Appendix E.2 Prerequisite process model

The following figure shows the process model assumed in the use cases.

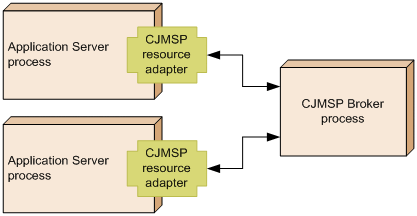

Figure E-1 Process model assumed in the use cases

[Figure]

One CJMSP Broker can be accessed from multiple J2EE servers.
One CJMSP resource adapter can be defined in one J2EE server.
