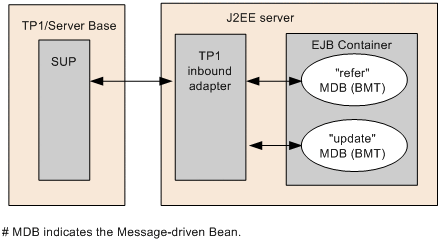

The following figure shows the configuration of the TP1 inbound linking functionality sample program:

Figure M-47 Configuration of TP1 inbound linking functionality sample program

This sample program receives RPC request messages from C language based SUP of Base sample provided by TP1/Server Base. It is a Message-driven Bean program for executing a process similar to C language based SPP of Base sample and returns the execution result to the C language based SUP as a RPC reply message. The Message-driven Bean process acquires the customer information, and updates in the same way as that of C language based SPP of Base sample.

The sample program stores the customer information in a table in the memory. The following Table M-5 describes the table configuration and Table M-6 describes the contents of the table used by the sample program:

Table M-5 Configuration of the table used by the sample program

Column	Explanation
name	Name
sex	Sex
age	Age
sale	Sale

Table M-6 Contents of the table used in sample program

name	sex	age	sale
Suzuki	M	30	1000000
Okada	F	23	1500000
Yoshida	F	26	800000
Saitoh	M	24	1000000
Itoh	M	35	1800000
Nishikawa	M	20	300000
Katoh	F	28	1000000
Satoh	F	27	2100000
Hasegawa	M	25	600000
Watanabe	M	31	1600000

The following procedure describes the procedure for executing the sample programs.

(a) Setting the base sample of TP1/Server Base

Perform the following settings for the Base sample of TP1/Server Base.

• Setting the scheduler direct by user service network definition

Set OpenTP1 user service definition and the user service network definition to call TP1 inbound adapter with the scheduler direct functionality by user service network definition. Set the following contents.

• Specify TP1 inbound adapter service group name, host name and port number in the user service network definition. The following table describes the settings:


  Table M-7 Settings in user service network definition

  Settings	Contents to be set
  Service group name	Specify the service group name "base_svg" specified in the Base sample.
  Host name	Specify the host name of Application Server.#
  Port number	Specify the port number defined in the scd_port property of the Connector property file of TP1 inbound adapter.

  #: OpenTP1 compares the IP addresses of RPC sender and receiver, executes UNIX domain communication if the machine is the same, and INET domain communication if the machines are different. TP1 inbound adapter supports only INET domain communication. Hence, when you use OpenTP1 and TP1 inbound adapter on the same machine, you must specify the IP address different than the source assigned by IP alias functionality, in the host name.




  Example of user service network definition

  dcsvgdef -g base_svg -h Host name[:Port number]

• Set definition in the user service definition rpc_destination_mode. This enables you to search address from the specified value of user service network definition when you call the dc_rpc_call function.


  Example of user service definition

  set rpc_destination_mode = definition

  For details, see the OpenTP1 Program Creation Guide.


• Setting the performance analysis trace

You must set the performance analysis trace in the common system definitions; to inherit the information of OpenTP1 performance analysis trace by TP1 inbound adapter. The following table describes the settings:

Table M-8 Settings of the performance analysis trace

Settings	Purpose of setting
set prf_trace=Y	To acquire the information of trace for the performance validation.
set rpc_prf_trace_level=00010001	To transmit the OpenTP1 PRF information to Cosminexus.

For common system definitions, see the manual OpenTP1 System Definition.

(b) Compiling the sample programs

Compile the sample programs by using a batch file (compile.bat) provided in the sample. This batch file creates EAR file.

(c) Setting the J2EE server

See Appendix M.1(1) Setting the J2EE server.

(d) Customizing the J2EE server

See Appendix M.1(2) Customizing the J2EE server.

(e) Starting the J2EE server

See Appendix M.1(3) Starting the J2EE server.

(f) Importing, setting and starting TP1 inbound adapter

For details on importing and setting the TP1 inbound adapter, see Appendix M.1(4) Setting the resource adapter. However, among the description in the reference, connection test of the resource adapter with the cjtestres command need not be executed. Message KDJE48606-E is generated on executing the connection test. In the settings of TP1 inbound adapter, specify the service group name "base_svg" specified in the Base sample, in the service_group property of the Connector property file.

(g) Deploying the application

See Appendix M.1(5) Importing, setting and starting the application.

(h) Executing SUP

See the Base sample provided by TP1/Server Base.

(i) Undeploying the application

See Appendix M.1(6) Stopping and deleting the application.

(j) Stopping the J2EE server

See Appendix M.1(7) Stopping the J2EE server.

This section describes the notes on using sample programs.

• Setting a connection of TP1 inbound adapter

Ensure the proper settings for the connection of TP1 inbound adaptor to use as a resource in this sample program.

• Resolving the link of a resource
  The resource link need not be resolved if the default display name of TP1 inbound adapter is not changed. You must resolve the resource link if the default display name of TP1 inbound adapter is changed. The following procedure describes the method of resolving the link:

  1. Set the display name of the resource in <message-ref> of cosminexus.xml provided in the sample.
     For details on setting the display name, see 2. Cosminexus Application Property file (cosminexus.xml) in the uCosminexus Application Server Application and Resource Definition Reference Guide.

  2. Deploy the application.

• Platform to execute the sample program

This sample program does not create or acquire the user data that recognizes Endian. Hence, run SUP on the platform having the identical Endian. If you run SUP on a platform having different Endian, the value of "Sales" in the sample program becomes invalid.
