This section describes the post-installation directory configuration of Application Server. The section also describes the directory configuration of Cosminexus Component Container, among the component software of Application Server.
The installation directory is described as follows:
This section describes the directory structure of Application Server for each OS.

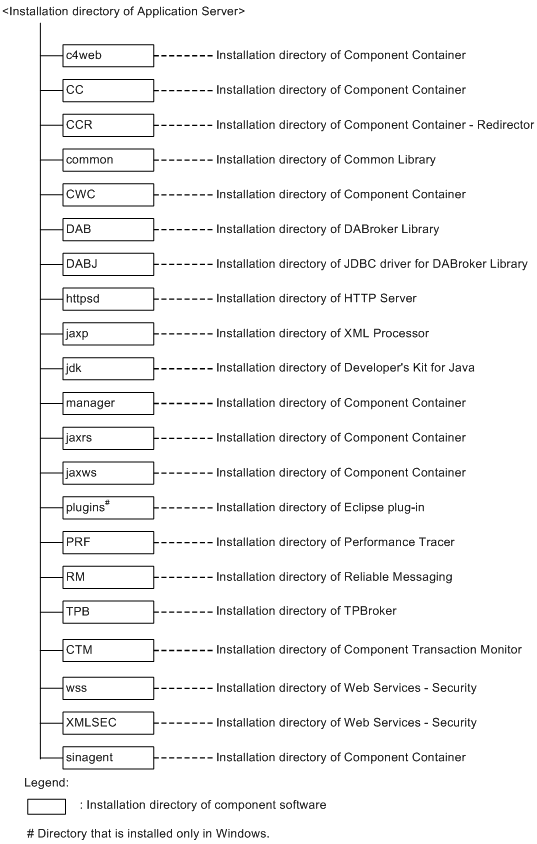

The following figure shows the directory structure of Application Server for Windows. Note that "Cosminexus" is omitted from the name of the component software in the figure.
Figure B-1 Directory structure of Application Server (for Windows)
![[Figure]](FIGURE/ZU070300.GIF)

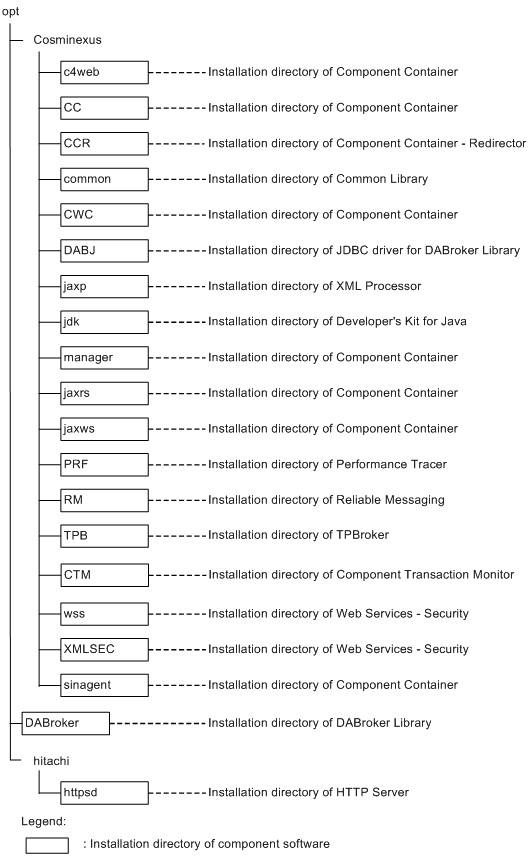

The following figure shows the directory structure of Application Server for UNIX. Note that "Cosminexus" is omitted from the name of the component software in the figure.
Figure B-2 Directory structure of Application Server (for UNIX)
![[Figure]](FIGURE/ZU070400.GIF)
The following table describes the structure of each directory under Cosminexus Component Container directory in Figure (1).
This directory provides the functions of the platforms such as container, from among the functions provided by Cosminexus Component Container. The directory is Cosminexus- installation- directory \CC (for windows), or /opt/Cosminexus/CC (for Unix).
Table B-1 Directory structure of Cosminexus Component Container (CC directory)
| Directory | Explanation | |||
|---|---|---|---|---|
| adapters | -- | A directory for storing the adapters | ||
| OpenTP1 | A directory for storing the TP1 inbound adapters | |||
| admin | -- | J2EE server management directory | ||
| bin | A directory for storing the server management command | |||
| dtds | A directory for storing the DTD files for CUI | |||
| logs | A directory for storing a log of the server management command | |||
| sysconf | A directory for storing the system definition files of the server management command. However, you cannot modify the directory. | |||
| templates | A directory for storing the property file templates | |||
| usrconf | A directory for storing the user definition files of the server management command (Customized). | |||
| batch | -- | A directory for batch applications | ||
| bin | A directory for storing the execution files of batch applications | |||
| logs | A directory to output a log of batch applications | |||
| sysconf | A directory for storing the system definition files of batch applications. However, you cannot modify the directory. | |||
| templates | A directory for storing the templates of user definition files of batch applications | |||
| cjmsp | -- | A directory for Cosminexus JMS provider | ||
| bin | A directory for storing the Cosminexus JMS provider commands | |||
| lib | -- | A directory for storing the library files and the RAR files of Cosminexus JMS provider | ||
| props | -- | A directory for storing the property files of Cosminexus JMS provider | ||
| broker | A directory for storing the broker property files of Cosminexus JMS provider | |||
| templates | A directory for storing the templates of Connector property files of the CJMSP resource adapter | |||
| var | -- | A default directory of Cosminexus JMS provider | ||
| admin | -- | A directory for management command of Cosminexus JMS provider | ||
| config | A directory for storing the management command properties of Cosminexus JMS provider | |||
| instances | A directory for storing the instances of Cosminexus JMS provider | |||
| client | -- | A directory for EJB client applications | ||
| bin | A directory for storing the execution files of EJB client applications | |||
| lib | A directory for storing the JAR files of EJB client applications | |||
| logs | A directory to output a log of EJB client applications | |||
| sysconf | A directory for storing the system definition files of EJB client applications. However, you cannot modify the directory. | |||
| templates | A directory for storing the templates of user definition files of EJB client applications | |||
| DBConnector | -- | A directory for storing the RAR files of DB Connector | ||
| ReliableMessaging | A directory for storing the RAR files of DB Connector for Cosminexus RM | |||
ClusterPool |
A directory for storing the RAR files when using the cluster connection pool functionality | |||
| examples |
A directory for storing the sample programs | |||
| lib |
A directory for storing the class library files for Cosminexus Component Container | |||
| logs |
A directory for storing the log during installation | |||
| server | -- | -- | ||
| bin | A directory for storing the command tools for the J2EE server | |||
| lib | -- | A directory for storing the library files for the J2EE server | ||
| dtds | A directory for storing the DTD files used in Cosminexus Component Container. However, you cannot modify the directory. | |||
| schemas | A directory for storing the DD schema definition files | |||
| public | A default work directory of the J2EE server | |||
| repository | A temporary work directory. | |||
| sysconf | A directory for storing the system definition files. However, you cannot modify the directory. | |||
| templates | A directory for storing the templates of configuration files or property files | |||
| usrconf | -- | -- | ||
| ejb | -- | -- | ||
| local-host-name | A directory for storing the user definition files of the J2EE server (Customized) | |||
| sfo | -- | A directory for the session fail-over functionality | ||
| lib | A directory for storing the library for the session fail-over functionality | |||
| sfo_server | A directory for storing the SFO server applications | |||
| sfo_war | A directory for storing the DD (web.xml) of Web applications for the session fail-over functionality | |||
| spool | -- | A temporary directory | ||
| web | -- | A root directory for servlet engine mode (compatibility functionality) | ||
| bin | A directory for storing the command tools of the servlet engine mode (compatibility functionality) | |||
| containers | -- | -- | ||
| local-host-name | -- | -- | ||
| usrconf | A directory for storing the user definition files for the local- host- name | |||
| webapps | A directory for storing the Web applications for the local- host- name | |||
| jdbc | A directory for storing the connection pool functionality management tools for the servlet engine mode (compatibility functionality) | |||
| redirector | -- | A directory for storing the redirector main unit /definition files | ||
| logs | A directory to output a redirector log | |||
| sysconf | A directory for storing the system definition files. However, you cannot modify the directory | |||
| templates | A directory for storing the templates of user definition files. However, you cannot modify the directory | |||
This directory provides the operation management functions of Application Server, from among the functions provided by Cosminexus Component Container.
Table B-2 Directory structure of Cosminexus Component Container (manager directory)
| Directory | Explanation | ||||
|---|---|---|---|---|---|
| bin | A directory for storing the commands that are used in the management functionality | ||||
| config | -- | A directory for storing the commands that are used in the management functionality | |||
| templates | A directory for storing the definition files that are used in the operation management functionality | ||||
| containers | -- | -- | |||
| m | -- | -- | |||
| usrconf | A directory for storing the user authentication information definition files | ||||
| webapps | -- | -- | |||
| mngsvr | A directory for storing the performance files of Management Server | ||||
| WEB-INF | A directory for storing the web.xml | ||||
| vmxsvr | -- | A directory for storing the virtual server manager GUI login JSP files | |||
| image | A directory for storing the header titles log of the virtual server manager | ||||
| WEB-INF | A directory for storing the files that map the URL and servlet class | ||||
| examples | A directory for storing the user management samples | ||||
| lib | A directory for storing the library files | ||||
| log | A log output destination directory | ||||
| modules | A directory for storing the custom login modules of the integrated user management framework | ||||
| spool | -- | A directory for log collection | |||
| mibs | A directory for storing the MIB | ||||
| tmp | A temporary work directory | ||||
| apps | A directory for default application registration | ||||
| externals | -- | -- | |||
| jp1 | -- | A directory for storing the JP1 linkage files. Note that this directory is used in Windows. | |||
| ajs3_custom_jobs | A directory for storing custom jobs. Note that this directory is used in Windows. | ||||
| mngsvrmonitor | A directory for storing the monitor start commands. Note that this directory is used in Windows. | ||||
| ScenarioTemplate | A directory for storing the scenario templates | ||||
| compat3 | -- | A directory for storing the performance files of Management Server of the old version Note that this directory is used in Windows, AIX, HP-UX, and Solaris. |
|||
| bin | A directory for storing the commands used in the operation management functionality | ||||
| config | -- | A directory for storing the definition files used in the operation management functionality | |||
| Administrator | A directory for storing the user password or user registration | ||||
| fwj | A directory for storing the property files for each business | ||||
| log | A directory for storing the trace files | ||||
| tmp | A temporary work directory | ||||
| setup | -- | A Setup Wizard directory | |||
| bin | -- | ||||
| config | A directory for storing the setup files for the Setup Wizard and the files that maintain the setup information | ||||
| lib | -- | ||||
| log | A directory for the trace files of the Setup Wizard | ||||
| tmp | A temporary work directory of the Setup Wizard | ||||
| vmx | -- | A directory for storing the files used in the virtual server manager of 08-50 mode. Also, the URL files to login to the virtual server manager GUI are stored under this directory. | |||
| bin | A directory for storing the commands used in the virtual server manager of 08-50 mode | ||||
| config | A directory for storing the definition files used in the virtual server manager of 08-50 mode | ||||
| log | A directory for storing the trace files of the virtual server manager of 08-50 mode | ||||
| spool | A directory for storing the processing data of the virtual server manager of 08-50 mode | ||||
| templates | A directory for storing the templates of the definition files used in the virtual server manager of 08-50 mode | ||||
| vmi Legends |
-- | A directory for storing the files used in the virtual server manager | |||
| bin | A directory for storing the commands used in the virtual server manager | ||||
| config | -- | A directory for storing the definition files used in the virtual server manager | |||
| lb | A directory for storing the load balancer connection setting property files used in the virtual server manager | ||||
| spool | A directory for storing the processing data of the virtual server manager | ||||
| templates | A directory for storing the templates of the definition files used in the virtual server manager | ||||
This directory provides the functions of the SOAP application execution platform among the functions provided by Cosminexus Component Container.
This directory provides the JAX-RS functions among the functions provided by Cosminexus Component Container.
This directory provides the JAX-WS engine functions among the functions provided by Cosminexus Component Container.
This directory provides the functions that are used during Web application development among the functions provided by Cosminexus Component Container.
This directory provides the functions of the server communication agent among the functions provided by Cosminexus Component Container.
