uCosminexus Application Server, System Setup and Operation Guide
Note the following items when setting up the system environment:

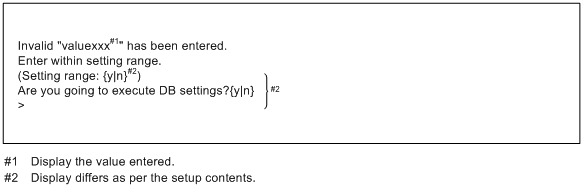

Figure 2-1 Window displayed on entering a value that cannot be set
Figure 2-2 Window displayed on re-entering a value for items having the value that can be set as "0 characters or more"
Table 2-5 Port numbers used in standard setup
| Port number | Purpose |
|---|---|
| 80 | Port number of Web server |
| 900 | Port number of in-process Naming Service |
| 8007 | Port number of ajp13 |
| 8080 | Port number of management server |
| 20295 | Port number of Administration Agent |
| 23152 | Port number of RMI registry |
| 28005 | Port number for Management Server completion request reception |
| 28009 | Port number for Management Server internal communication |
| 28080 | HTTP port number for Management Server connection |
Table 2-6 List of files used in Setup Wizard
| Classification | File name | Overview | Output destination |
|---|---|---|---|
| Setup information list | setupwizardlist.txt | This file is output after the successful completion of setup processing. This file is meant for checking the environment configured by using the Setup Wizard. |
|
| Setup information file | setupwizard.dat | This file is output on selecting Save Setup Information in the Setup Information window. It can be used for batch setup. |
|
| setupwizard_success.dat | This file is automatically output after the (successful) completion of setup processing. It can be used for batch setup or system replication. |
||
| setupwizard_failed.dat | This file is automatically output after the (failed) completion of setup processing. It can be used for batch setup. However, when using this file for batch setup, you must remove the cause of failure in the setup processing. |
||
| Log file | setupwizard<number of files>.log | Log of the Setup Wizard is output. You can specify the log file settings such as maximum file size and maximum number of files by using setup.cfg (setting file for Setup Wizard). |
Any (output destination specified in setup.log.dir of setup.cfg) |
| Easy Setup definition file | cmxsetupwz.xml | This file is output after the (successful) completion of the setup process. This file is meant for checking the defined contents of the environment configured by using the Setup Wizard. |
|
| Connector property file of DB Connector | DBConnector_HiRDB_Type4_CP_cfg.xml Or DBConnector_Oracle_CP_cfg.xml |
This file is output after the (successful) completion of setup process. This file is meant for checking the defined contents of the DB Connector used in the environment configured by using the Setup Wizard. |
|
| Settings file for Setup Wizard | setup.cfg | This file is provided for specifying the output destination of the Setup Wizard log file, maximum file size, and the maximum number of files. |
