13.1.1 General investigation procedure

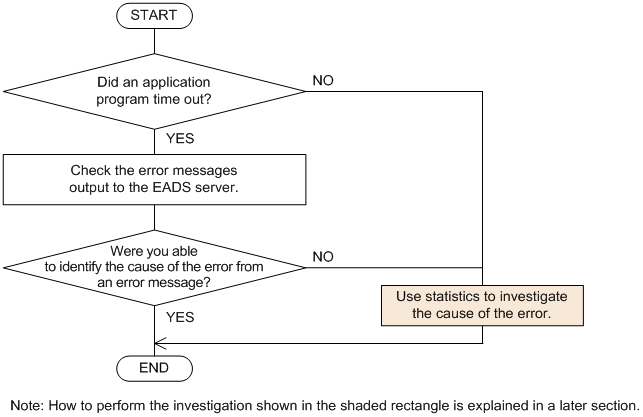

The following figure shows the general procedure for investigating the cause of a poor response, and an application program timeout due to a poor response.
|
|
![[Figure]](GRAPHICS/ZU131020.GIF)
- Examples of events
-
-
A poor response was reported.
-
Application program processing timed out due to a poor response.
-
- Possible causes
-
-
Accesses are concentrated on a specific EADS server.
-
The size of the data is not suitable for storage.
-
A non-EADS process is performing heavy processing.
-
Requests are concentrated or have increased.
-
- Angles of investigation using statistics
-
-
Is the cause the EADS server, a user function, or the network?
Identify the cause of the poor response from the average user function internal processing time and the average user program processing time in a user function.
-
- Error information needed for the investigation
-
-
All EADS servers' statistics
For details about how to obtain statistics, see 11.13 Obtaining statistics.
-
