11.13.4 User function statistics (eads_function_stats.csv)

(1) Information output as user function statistics (eads_function_stats.csv)

The table below lists and describes the information that is output as user function statistics (eads_function_stats.csv).

This information can be used for user function performance measurement.

Table 11‒3: Information output as user function statistics (eads_function_stats.csv)

No.	Item	Column name	Output value
1	Date statistics were output	Date	Current value
2	Time statistics were output	Time	Current value
3	IP address of an EADS server for which statistics are output and the EADS server's port number used for communication with EADS clients	ThisNode	Setting
4	User function name	FunctionName	Setting
5	Total number of times user functions were executed	FunctionExecuteCount	Statistic
6	Maximum user function execution time (microseconds)	FunctionExecuteMaxTime	Statistic
7	Average user function execution time (microseconds)	FunctionExecuteAverageTime	Statistic
8	Minimum user function execution time (microseconds)	FunctionExecuteMinTime	Statistic
9	Maximum user function internal processing time (microseconds)	FunctionInternalProcessingMaxTime	Statistic
10	Average user function internal processing time (microseconds)	FunctionInternalProcessingAverageTime	Statistic
11	Minimum user function internal processing time (microseconds)	FunctionInternalProcessingMinTime	Statistic
12	Maximum user program processing time in the user function (microseconds)	UserProgramProcessingMaxTime	Statistic
13	Average user program processing time in the user function (microseconds)	UserProgramProcessingAverageTime	Statistic
14	Minimum user program processing time in the user function (microseconds)	UserProgramProcessingMinTime	Statistic
15	Total number of puts called by user functions	PutCount	Statistic
16	Total number of successful puts called by user functions	PutSuccessCount	Statistic
17	Total number of gets called by user functions	GetCount	Statistic
18	Total number of successful gets called by user functions	GetSuccessCount	Statistic
19	Total number of removes called by user functions	RemoveCount	Statistic
20	Total number of successful removes called by user functions	RemoveSuccessCount	Statistic
21	Total number of creates called by user functions	CreateCount	Statistic
22	Total number of successful creates called by user functions	CreateSuccessCount	Statistic
23	Total number of updates called by user functions	UpdateCount	Statistic
24	Total number of successful updates called by user functions	UpdateSuccessCount	Statistic
25	Total number of replaces called by user functions	ReplaceCount	Statistic
26	Total number of successful replaces called by user functions	ReplaceSuccessCount	Statistic

To Page Top

(2) Sources of statistics

The following figure shows the sources of the statistics.

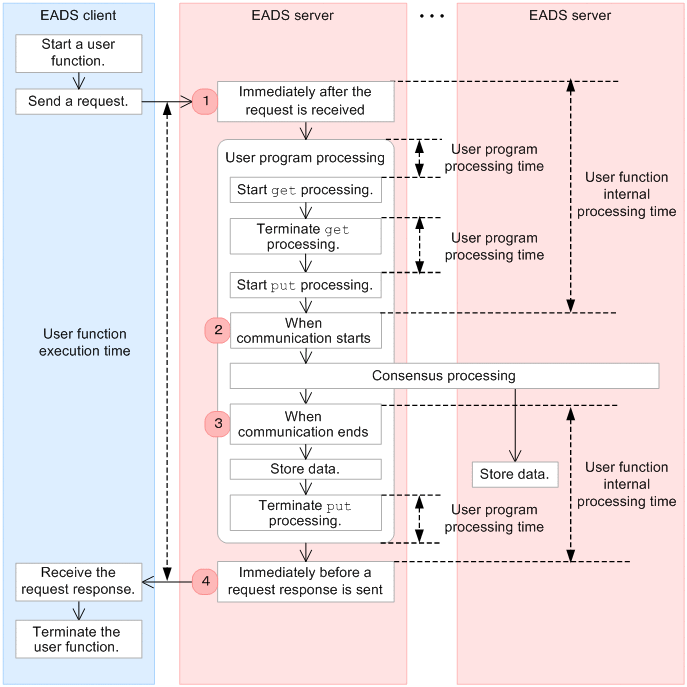

Figure 11‒2: Sources of statistics (user function statistics)

Explanation

• The user function execution time is the processing time between when a user function execution request is accepted and a response is sent. The EADS server determines the user function execution time based on the difference in time between Nos. 1 and 4. The EADS server also obtains the following statistics:

  • Maximum user function execution time (FunctionExecuteMaxTime)

  • Average user function execution time (FunctionExecuteAverageTime)

  • Minimum user function execution time (FunctionExecuteMinTime)

• The EADS server determines the time spent on consensus processing based on the difference in time between Nos. 2 and 3.

• The user function internal processing time equals the user function execution time minus the time spent on consensus processing. The EADS server also obtains the following statistics:

  • Maximum user function internal processing time (FunctionInternalProcessingMaxTime)

  • Average user function internal processing time (FunctionInternalProcessingAverageTime)

  • Minimum user function internal processing time (FunctionInternalProcessingMinTime)

• The user program processing time equals the total time spent on user program processing minus the time spent on consensus processing minus the API function processing time. The EADS server also obtains the following statistics:

  • Maximum user program processing time in the user function (UserProgramProcessingMaxTime)

  • Average user program processing time in the user function (UserProgramProcessingAverageTime)

  • Minimum user program processing time in the user function (UserProgramProcessingMinTime)
