2.2.2 Buffer used for communication

The following types of buffers are used to send and receive data during communication between an EADS client and an EADS server, as well as between EADS servers that use TCP:

• Buffer for transmitting and receiving data

• Buffer for transmitting and receiving consensus messages

You can improve communication efficiency by adjusting the buffer size according to the volume of data to be handled. For details, see 9.1.2 Specifying the buffer size.

The following figure shows the buffers used for communication.

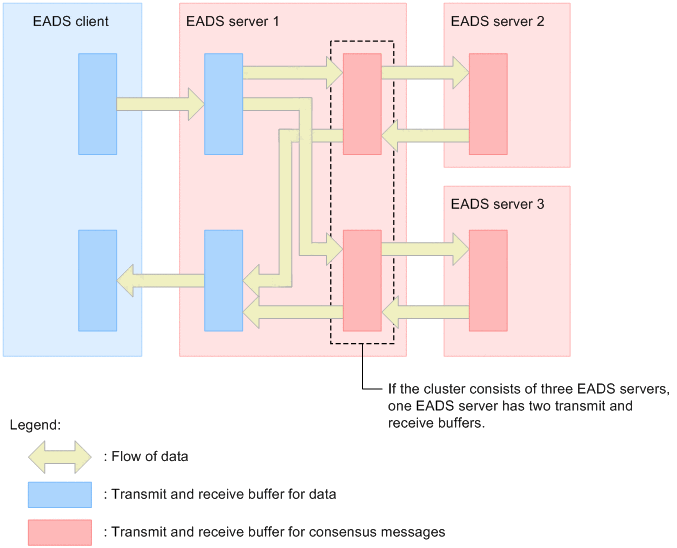

Figure 2‒4: Overview of the buffers used for communication

For details about consensus messages, see 2.4.9 General procedure for data access.
