File output processing involves converting data processed by the stream data processing engine so that it conforms to a specified output format, and then outputting the data. An output adaptor is used to output data to a file.

The following figure provides an overview of file output.

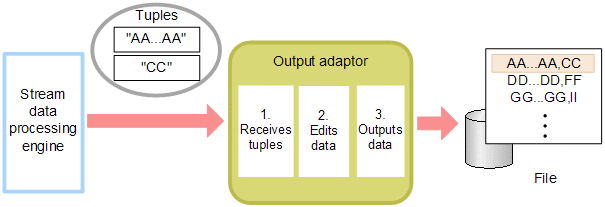

Figure 10-19 Overview of file output

1. Receives tuples
   Receives tuples containing the summary analysis results of stream data processed by the stream data processing engine.

2. Edits data
   Edits the received data (performs data mapping and format conversion).

3. Outputs data
   Converts the edited data to conform to a specified output format and then uses a file output connector to output the data.
