16.2.9 User definition file

This file defines information to be imported to a user-specific security requirement in the judgment item User Definition. The following table lists the items and setting values that can be specified in this file.

Table 16-17 Items and setting values that can be specified in a user definition file

No. Item Setting value Required
1 Parameter ID UserDefJudge Yes
2 Judgment item name Specify the name of the user-defined judgment item, using a string with 255 or fewer bytes. Yes
3 Class# Specify the class of the asset management database of AIM to be used in the judgment. For the setting values, see Table 16-7 List of classes. Yes
4 Property# Specify the display name of the property to be used in the judgment.
For the setting values, see Table 6-30 List of classes and properties that can be used in user-defined judgments.		 Yes
5 Comparison condition# Specify a comparison condition. For the setting values, see Table 16-8 List of comparison conditions. Yes
6 Comparison value#
  • Property attribute of numeric type
    Type a positive number of 1 to 19 digits, or a negative number of no more than 20 digits beginning with a hyphen (-).
  • Property attribute of string type
    Type a character string (other than a line feed code) no larger than the property size.
    For details about property sizes, see Table 6-30 List of classes and properties that can be used in user-defined judgments.
  • Property attribute of date/time type
    Set one or more of the following items:
    Year: 1 to 9999
    Month: 1 to 12
    Day: 1 to 31
    Hour: 0 to 23
    Minute: 0 to 59
    Second: 0 to 59
 Yes
7 Treatment when value is not set for property# Specify the processing when no value is set for the property. For the setting values, see Table 16-9 List of treatments when no value is set for a property. Yes
8 Security level Specify the security level. For the setting values, see Table 16-5 List of security levels. Yes

Legend:
Yes: Mandatory (must be specified)

#
To specify multiple classes, properties, comparison conditions, comparison values, or processing options for unspecified properties, specify each item in succession in the following format:

"""Class-name1"",""Class-name2"",""Class-name3"",..."
"""Property-name1"",""Property-name2"",""Property-name3"",..."
"""Comparison-condition1"",""Comparison-condition2"",""Comparison-condition3"",..."
"""Processing-option1"",""Processing-option2"",""Processing-option3"",..."
When specifying multiple definitions, specify the items in each line in corresponding order.

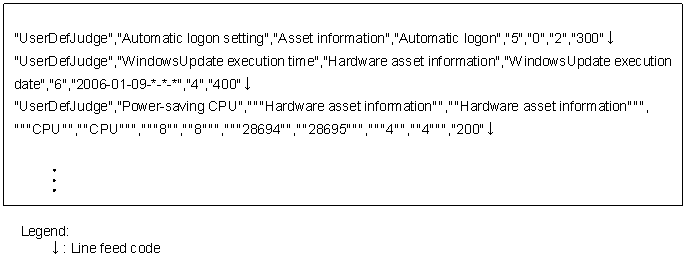

The following figure shows an example of a user definition file.

[Figure]
