13.3.2 Setting up a management and network control server

Set up a management and network control server by installing and setting up the following program on the management server:

Organization of this subsection
(1) Confirming the system setup with the core products
(2) Installing JP1/CSC - Agent
(3) Setting up JP1/CSC - Agent

(1) Confirming the system setup with the core products

Confirm that the following programs have been installed and set up on the management server (called a management and network control server hereafter):

#
AMT Linkage facility Component of JP1/Software Distribution must be installed.

For details about installing and setting up each program, see 5. Installation and Setup.

(2) Installing JP1/CSC - Agent

Install JP1/CSC - Agent on the management and network control server.

For details about installing JP1/CSC - Agent, see 5.7.1 Installing JP1/CSC - Agent.

(3) Setting up JP1/CSC - Agent

After installing JP1/CSC - Agent, make sure that you set up JP1/CSC - Agent before you start it.

You can specify the information required for JP1/CSC - Agent setup by using the Client Security Control - Agent Setup dialog box.

To display the Client Security Control - Agent Setup dialog box and specify the settings:

  1. Click the Start button, and choose Programs, Client Security Control, and then Agent Setup.
    The Client Security Control - Agent Setup dialog box appears.

  2. Set values for the items.
    When you select an item, a box appears below the item list. In this box, you can enter a value or string, or select a value from the pull-down menu.

  3. Click the OK button.
    The information you have specified is set for the JP1/CSC - Agent environment. The Client Security Control - Agent Setup dialog box closes.
    To close this dialog box without setting the environment, click the Cancel button.

The following figure shows the Client Security Control - Agent Setup dialog box.

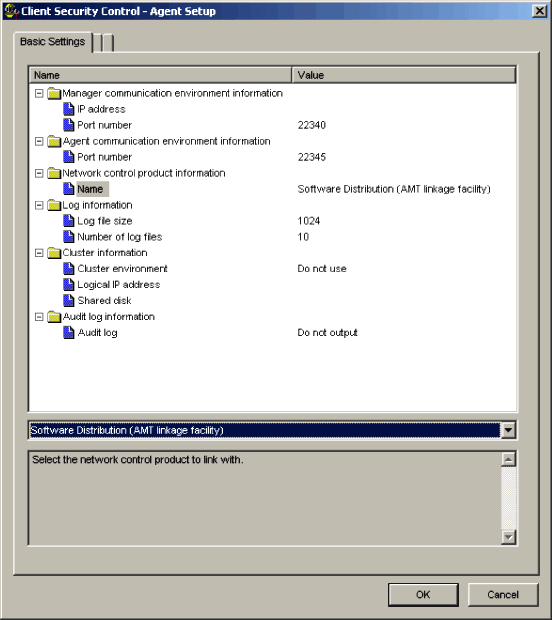

Figure 13-14 Client Security Control - Agent Setup dialog box

[Figure]

The following table lists the items that can be set in the Client Security Control - Agent Setup dialog box.

Table 13-10 Items that can be set in the Client Security Control - Agent Setup dialog box

Items Description Specifiable values Default for initial environment setup
Manager communication environment information IP address The IP address for JP1/CSC - Manager IPv4 format (xxx.xxx.xxx.xxx) --
Port number The port number that JP1/CSC - Manager uses to communicate with JP1/CSC - Agent. Enter the same port number as specified in Port number for receiving requests under Manager communication environment information, in the Basic Settings page of JP1/CSC - Manager. 1024 to 65535 22340
Agent communication environment information Port number The port number of JP1/CSC - Agent. Enter the same port number as that registered for Port number in the Add agent information window of JP1/CSC - Manager. 1024 to 65535 22345
Network control product information Name The name of the linked network control product. Software Distribution (AMT linkage facility) Network Monitor
Log information Log file size Specify the maximum size (in kilobytes) of the JP1/CSC - Agent log files. 1 to 2097151 1024
Number of log files Specify the maximum number of JP1/CSC - Agent log files. 1 to 999 10
Cluster information Cluster environment Specify whether to run JP1/CSC - Agent in a cluster environment. Use / Do not use Do not use
Logical IP address Specify a logical IP address to use in the cluster environment. IPv4 format (xxx.xxx.xxx.xxx) --
Shared disk Specify the path for the shared disk used in the cluster environment. Full path --
Audit log information Audit log Specify whether to output audit logs. Output / Do not output Do not output

Legend:
--: No default provided

Reference note
The log information contains information about startup and termination of JP1/CSC - Agent, as well as connection information for the network control product.
