Job Management Partner 1/Client Security Control Description, User's Guide and Operator's Guide
Set up a network control server, installing and setting up the following programs:
- JP1/NM - Manager
- JP1/CSC - Agent
- Organization of this subsection
- (1) Installing JP1/NM - Manager
- (2) Setting up JP1/NM - Manager
- (3) Installing JP1/CSC - Agent
- (4) Setting up JP1/CSC - Agent
(1) Installing JP1/NM - Manager
Install JP1/NM - Manager on the network control server. For details about installing JP1/NM - Manager, see the manual Job Management Partner 1/Network Monitor - Manager Description, User's Guide and Operator's Guide.
(2) Setting up JP1/NM - Manager
To link JP1/NM - Manager with JP1/CSC, specify the following settings in the Integrated Management window of JP1/NM - Manager:
- Set the common login information for the treatment and monitoring servers.
- Create a treatment and monitoring server list.
- Set JP1 linkage.
The following table lists the items that can be set in the Integrated Management window of JP1/NM - Manager.
Table 13-1 Items that can be set in the Integrated Management window of JP1/NM - Manager
No. Item Contents set 1 Set the common login information for logging in to treatment and monitoring servers Set the same login information used to log in from a Web browser to the treatment and monitoring servers. The common login information is as follows:
- User name
- Password
2 Create a treatment and monitoring server list The list of treatment and monitoring servers is created as a CSV file. 3 Set up JP1 linkage Perform the necessary settings to link to JP1/CSC. The items to be set are as follows:
- Select the Update the permitted/blocked devices list through the link function check box.
- Select the Update immediately by calling the API check box.
For details about how to perform these settings, see the manual Job Management Partner 1/Network Monitor - Manager Description, User's Guide and Operator's Guide.
(3) Installing JP1/CSC - Agent
Install JP1/CSC - Agent on the network control server. Note that JP1/NM - Manager must be installed and set up on the network control server before you install JP1/CSC - Agent.
For details about installing JP1/CSC - Agent, see 5.7.1 Installing JP1/CSC - Agent.
(4) Setting up JP1/CSC - Agent
After installing JP1/CSC - Agent, be sure to set up JP1/CSC - Agent before starting it.
You can set the information required for JP1/CSC - Agent setup by using the Client Security Control - Agent Setup dialog box.
The Client Security Control - Agent Setup dialog box has two pages, each of which is opened by clicking a tab. The following figure shows the Client Security Control - Agent Setup dialog box.

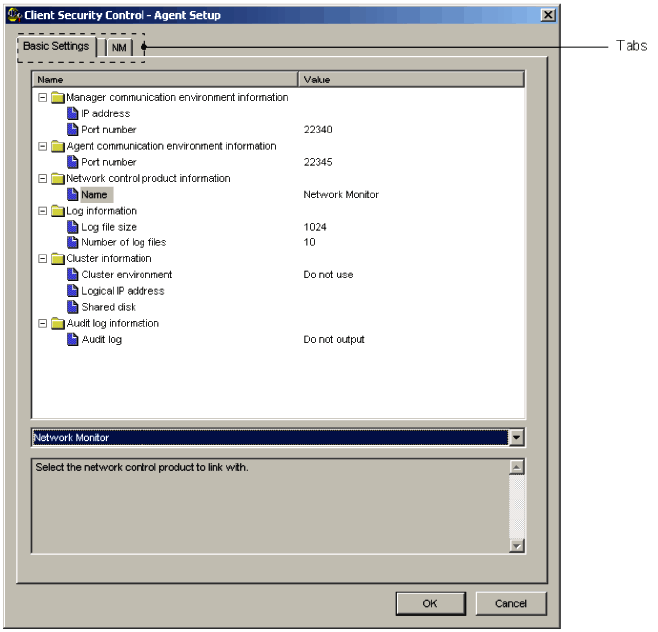

Figure 13-2 Client Security Control - Agent Setup dialog box
The following table describes the pages of the Client Security Control - Agent Setup dialog box.
Table 13-2 Pages of the Client Security Control - Agent Setup dialog box
Page Description Basic Settings The JP1/CSC - Agent environment settings that have already been specified can be displayed or modified. NM This page is used only if JP1/Network Monitor is linked. The format of the permitted-devices list registered in JP1/Network Monitor can be displayed or modified.
This page appears if JP1/Network Monitor is specified for Network control product information on the Basic Settings page.
- Note:
- The settings for linkage to JP1/Network Monitor are specified on the Basic Settings and NM pages in the Client Security Control - Agent Setup dialog box.
To display the Client Security Control - Agent Setup dialog box and edit the settings:
- Click the Start button, and choose Programs, Client Security Control, and then Agent Setup.
The Client Security Control - Agent Setup dialog box appears.
- Set values for the items.
When you select an item, a box appears below the item list. You can either enter a value or string directly in this box or select a value from the pull-down menu.
For details, see (a) Operations that can be performed on the Basic Settings page and (b) Operations that can be performed on the NM page.
- Click the OK button.
The contents you specified are set for the JP1/CSC - Agent environment. The Client Security Control - Agent Setup dialog box closes.
To close this dialog box without performing any environment settings, click the Cancel button.
(a) Operations that can be performed on the Basic Settings page
On the Basic Settings page, you can view or change the JP1/CSC - Agent environment settings.
The following figure shows the Basic Settings page.

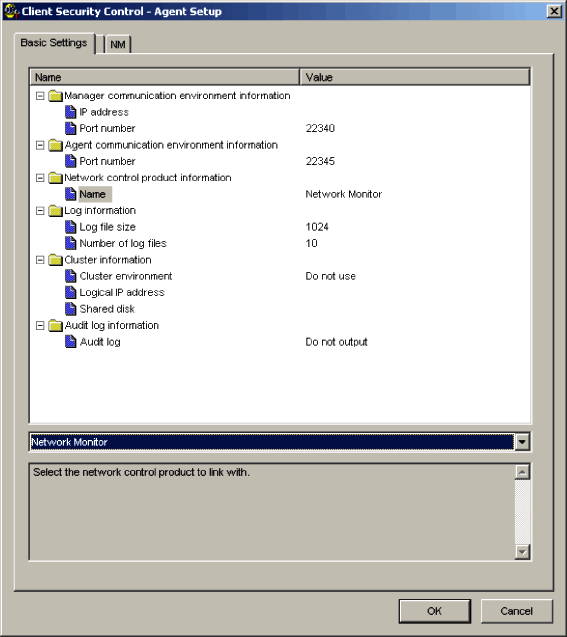

Figure 13-3 Basic Settings page
The following table describes the items that can be displayed and set on the Basic Settings page.
Table 13-3 Items that can be displayed and set on the Basic Settings page
Item Description Specifiable values Default for initial environment setup Manager communication environment information IP address The IP address for JP1/CSC - Manager. IPv4 format (xxx.xxx.xxx.xxx) -- Port number The port number JP1/CSC - Manager uses to communicate with JP1/CSC - Agent. Enter the same port number as specified in Port number for receiving requests under Manager communication environment information in the Basic Settings page of JP1/CSC - Manager. 1024 to 65535 22340 Agent communication environment information Port number The port number of JP1/CSC - Agent. Enter the same port number as that registered for Port number in the Add agent information window of JP1/CSC - Manager. 1024 to 65535 22345 Network control product information Name The name of the linked network control product. Network Monitor Network Monitor Log information Log file size Specify the maximum size (in kilobytes) of the JP1/CSC - Agent log files. 1 to 2097151 1024 Number of log files Specify the maximum number of JP1/CSC - Agent log files. 1 to 999 10 Cluster information Cluster environment Specify whether to run JP1/CSC - Agent in a cluster environment. Use / Do not use Do not use Logical IP address Specify a logical IP address to use in the cluster environment. IPv4 format (xxx.xxx.xxx.xxx) -- Shared disk Specify the path for the shared disk used in the cluster environment. Full path -- Audit log information Audit log Specify whether to output audit logs. Output / Do not output Do not output
- Legend:
- --: No default provided.
- Reference note
- The log information contains information about startup and termination of JP1/CSC - Agent, as well as connection information for the network control product.
(b) Operations that can be performed on the NM page
On the NM page, you can view or change the format of the permitted-devices list to be registered in JP1/Network Monitor.
The following figure shows the NM page.

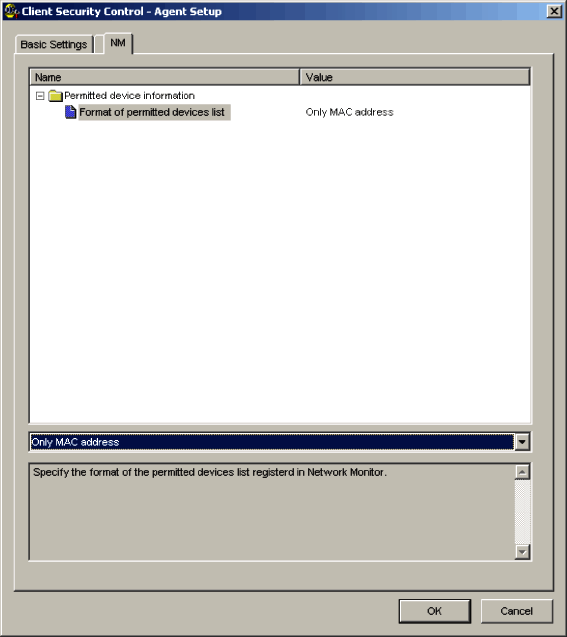

Figure 13-4 NM page
The following table describes the items that can be displayed and set on the NM page.
Table 13-4 Items that can be displayed and set on the Basic Settings page
Item Description Specifiable values Default for initial environment setup Permitted-device information Format of the permitted-devices list The format of the permitted-devices list to be registered in JP1/Network Monitor.# Only MAC address / MAC address and IP address Only MAC address
- #:
- For a network that uses DHCP to manage IP addresses, always specify Only MAC address.
