12.4.1 Basic configuration of quarantine system linked to JP1/Software Distribution (AMT Linkage facility)

The following figure shows the basic configuration of a quarantine system linked to JP1/Software Distribution (AMT Linkage facility).

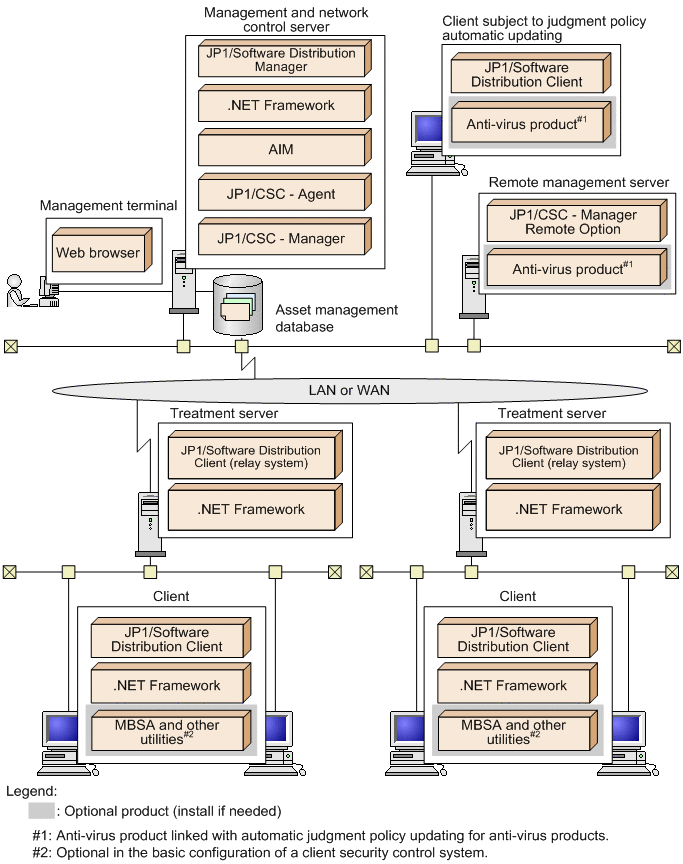

Figure 12-11 Basic configuration of quarantine system linked to JP1/Software Distribution (AMT Linkage facility)

Management terminal

A management terminal is used by an administrator to reference the asset management database, manage client asset information, monitor the status of client security measures, and implement actions. It uses the GUI for AIM.

Management and network control server

A management and network control server manages inventory information in an asset management database, judges client security levels according to the security policy, and exercises control appropriate for the security level over the connection of clients to the network.

It also packages files used to implement the security measures, such as software patches.

Remote management server

A system configuration with a remote management server is set up to automatically update judgment policies for anti-virus products by linkage with the anti-virus product installed on the remote management server, or to control client network connections from another system.

Install JP1/CSC - Manager Remote Option on the remote management server.

Client subject to judgment policy automatic updating

This client contains an anti-virus product linked with automatic judgment policy updating for anti-virus products. This client is required to automatically update judgment policy definitions for anti-virus products based on the update information for the anti-virus product installed on the client.

Treatment server

A treatment server implements security measures on clients.

Clients disconnected from the network are shut off from communication with other devices, except through specific ports such as one for JP1/Software Distribution. The JP1/Software Distribution port allows JP1/Software Distribution on the treatment server to be used to implement security measures in an online environment.

Client

A client is the entity that is managed in a quarantine system. A client sends inventory information to the management server, which judges the security level of the client for the inventory information based on the security policy.
