Job Management Partner 1/Client Security Control Description, User's Guide and Operator's Guide

6.14 Displaying clients that meet specified conditions

Display conditions can be set for the clients that appear in the PC list tree view in the Policy Management main window. Set the display conditions in the Set Display Conditions dialog box.

Before you set any display conditions, Policy Management Window (display conditions: No setting) appears in the title bar of the Policy Management main window.

To specify display conditions for the PCs listed in the Policy Management main window:

1. In the group tree view of the Policy Management main window, select a group and then choose View and Set Display Conditions.
   The Set Display Conditions dialog box appears.

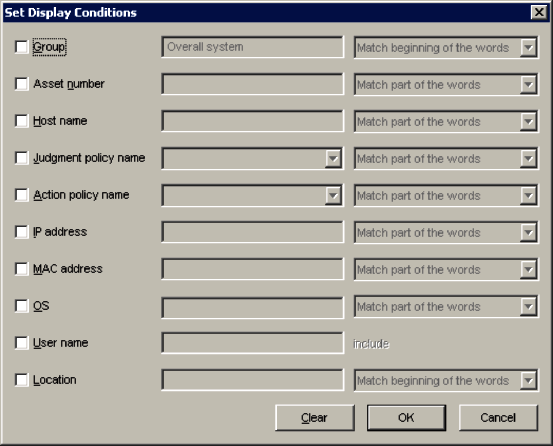

   Figure 6-40 Set Display Conditions dialog box



2. Set each item in the dialog box.
   Each item in the Set Display Conditions dialog box has a check box.
   To set an item as a display condition, select its check box.
   All the check boxes are cleared by default.
   The following table shows the items that can be specified as display conditions.


   Table 6-41 Items specifiable as display conditions

   No.	Item	Specification	Search options	Default search option
   1	Group	Shows the group name selected in the group tree view in the Policy Management main window. Not specifiable.	Select either of the following from the pull-down menu: Match all the words Match beginning of the words	Match beginning of the words
   2	Asset number	Specify the asset number in no more than 60 alphanumeric characters.	Select one of the following from the pull-down menu: Match all the words Match part of the words Match beginning of the words Match end of the words	Match part of the words
   3	Host name	Specify the PC host name as a string of no more than 255 characters.	Select one of the following from the pull-down menu: Match all the words Match part of the words Match beginning of the words Match end of the words	Match part of the words
   4	Judgment policy name	Select the appropriate judgment policy from the combo box, or type the judgment policy name in no more than 128 bytes.	Select one of the following from the pull-down menu: Match all the words Match part of the words Match beginning of the words Match end of the words	Match part of the words
   5	Action policy name	Select the appropriate action policy from the combo box, or type the action policy name in no more than 128 bytes.	Select one of the following from the pull-down menu: Match all the words Match part of the words Match beginning of the words Match end of the words	Match part of the words
   6	IP address	Specify the PC's IP address in no more than 70 alphanumeric characters.	Select one of the following from the pull-down menu: Match all the words Match part of the words Match beginning of the words Match end of the words	Match part of the words
   7	MAC address	Specify the PC's MAC address in no more than 70 alphanumeric characters.	Select one of the following from the pull-down menu: Match all the words Match part of the words Match beginning of the words Match end of the words	Match part of the words
   8	OS	Specify the OS name as a string of no more than 200 characters.	Select one of the following from the pull-down menu: Match all the words Match part of the words Match beginning of the words Match end of the words	Match part of the words
   9	User name#	Specify the PC user name as a string of no more than 255 characters.	--	--
   10	Location	Specify the PC location as a string of no more than 512 characters.	Select either of the following from the pull-down menu: Match all the words Match beginning of the words	Match beginning of the words

   Legend:

   --: No search options

   #

   The condition is regarded as satisfied when the specified character string matches part of a user name.




   Clear button

   Clears all settings in the text boxes.

   This button does not clear the check boxes and search options.

3. Click the OK button.
   The Set Display Conditions dialog box closes and the clients matching the specified condition are listed in the Policy Management main window.
   After you set the display conditions, Policy Management Window (display conditions: Setting) appears in the title bar of the Policy Management main window.


   Note

   Note the following when using the Set Display Conditions dialog box:

   • The set display conditions apply until you exit the Policy Management main window. The next time you open the window, no display conditions apply.
   • The set display conditions still apply when you select a different group in the group tree view. Thus, information about the clients in the selected group appears in the PC list tree view.
