Job Management Partner 1/Client Security Control Description, User's Guide and Operator's Guide

6.6.1 Adding mandatory software information

To add mandatory software information:

1. In the Edit Judgment Policy (Judgments for mandatory software) window, click the Add button.

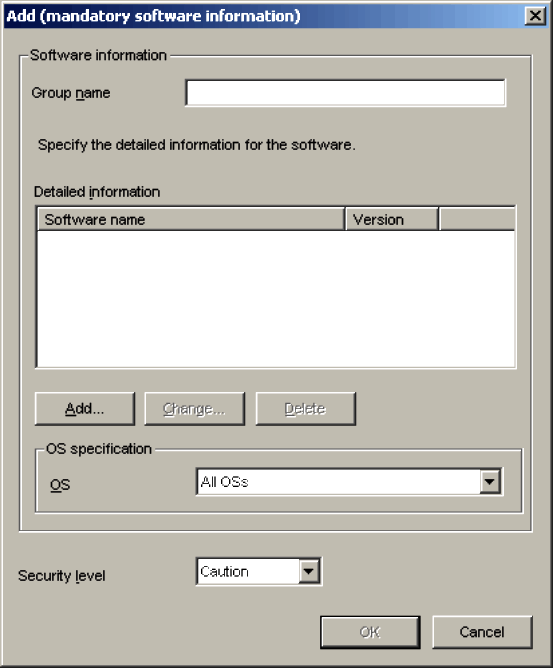

   The Add (mandatory software information) dialog box is displayed.




2. Enter the group name.
   To register multiple software names and versions as a group, enter the group name to be registered, using a string of 255 or fewer bytes. This item is required. The group name must be registered even if only one software item is registered.

3. Define detailed information about the mandatory software.
   Add, change, or delete detailed information about the mandatory software to be registered. Click the button for the desired operation, and then use the displayed dialog box to edit the detailed information.

4. Select an OS.
   Select an OS from the pull-down menu. The default is All OSs.

5. Select a security level.
   Select a security level from the pull-down menu. The default is Caution.

6. Click the OK button.
   The Add (mandatory software information) dialog box closes, and the Edit Judgment Policy (Judgments for mandatory software) window is displayed again.


The following table shows the names of the dialog boxes and message box displayed when the corresponding buttons are clicked in the Add (mandatory software information) dialog box.

Table 6-13 Names of dialog boxes and message box displayed from the Add (mandatory software information) dialog box

No.	Button	Dialog box name or message box name
1	Add	Add (mandatory software detailed information) dialog box
2	Change	Update (mandatory software detailed information) dialog box
3	Delete	Delete (mandatory software detailed information) message box

The following subsections explain how to add, change, and delete detailed information to be registered in the mandatory software group.

Organization of this subsection

(1) Adding detailed mandatory software information

(2) Changing detailed mandatory software information

(3) Deleting detailed mandatory software information

(1) Adding detailed mandatory software information

To add detailed mandatory software information in the Add (mandatory software information) dialog box:

1. In the Add (mandatory software information) dialog box, click the Add button.

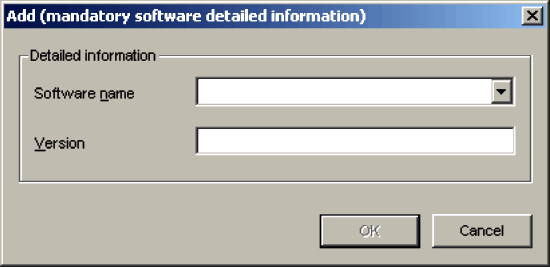

   The Add (mandatory software detailed information) dialog box is displayed.




2. Enter detailed mandatory software information.
   The following table lists the setting items.


   Table 6-14 Setting items for the Add (mandatory software detailed information) dialog box

   No.	Window item name	Description	Default
   1	Software name#1	Select the mandatory software name from the combo box. Alternatively, enter a string of 255 or fewer bytes. This setting is required.	The name entered in Group name
   2	Version#2	Enter the version of the mandatory software in 60 or fewer bytes.	None

   #1

   The name of the software is judged by partial matching.

   #2

   Versions are judged by forward matching. If the version registered as asset information in AIM is 0000, and you enter something other than 0000, the security level judgment result will be Unknown.



3. Click the OK button.
   The Add (mandatory software detailed information) dialog box closes, and the Add (mandatory software information) dialog box is displayed again. The detailed information entered for the mandatory software is added.


(2) Changing detailed mandatory software information

To change detailed mandatory software information in the Add (mandatory software information) dialog box:

1. In the Add (mandatory software information) dialog box, select the detailed mandatory software information you want to change, and then click the Change button. Alternatively, double-click the detailed mandatory software information you want to change.
   The Update (mandatory software detailed information) dialog box is displayed.
   Note that the Change button is disabled if you select more than one item of mandatory software detailed information.




2. Change the detailed mandatory software information.
3. Click the OK button.
   The Update (mandatory software detailed information) dialog box closes, and the Add (mandatory software information) dialog box is displayed again. The detailed information entered for the mandatory software is changed.


(3) Deleting detailed mandatory software information

To delete detailed mandatory software information in the Add (mandatory software information) dialog box:

1. In the Add (mandatory software information) dialog box, click to select the detailed mandatory software information.
   You can select more than one item of detailed mandatory software information.

2. Click the Delete button.
   The Delete (mandatory software detailed information) message box is displayed.




3. Check the message, and then click the OK button.
   The Delete (mandatory software detailed information) message box closes, and the Add (mandatory software information) dialog box is displayed again. The detailed mandatory software information you selected is deleted.
