Job Management Partner 1/Client Security Control Description, User's Guide and Operator's Guide

5.8.2 Creating a CSC user

CSC users are created by a CSC administrator or an Asset Information Manager administrator. CSC users can only execute some of the client security management functionality for AIM.

The following table describes a recommended example of the AIM client security management functionality available to CSC users.

Table 5-11 Example of functionality that a CSC user can use (recommended)

No.	AIM job category	AIM job menu	Button name for the Customize Job Windows window#	Functionality
1	Client Security Management	PC Security Level Management	History CSV	CSV output of judgment action history
2			Search	Search
3			CSV	CSV output of search results
4		Security Counter-Measure Evaluation	Search	Search
5			CSV	CSV output of search results
6		Statistics	Search	Search
7			CSV	CSV output of search results
8			Select all	Select all groups
9			Clear all	Deselect all groups
10			Graph	Display search results as graph

#

For details about the Customize Job Windows window, see (4) Limiting the GUI buttons that CSC users can use.

Note that CSC users can be created by users with the CSC administrator or Asset Information Manager administrator roles, using the AIM windows.

The following subsections describe how a CSC administrator or an Asset Information Manager administrator creates a CSC user, based on the recommended example given in Table 5-11.

Organization of this subsection

(1) Logging in to AIM

(2) Creating a new user role for a CSC user

(3) Assigning jobs that a CSC user can use

(4) Limiting the GUI buttons that CSC users can use

(5) Registering a CSC user

(1) Logging in to AIM

1. Log in from the Login window of AIM, as a user with either the CSC administrator role or the Asset Information Manager administrator role.

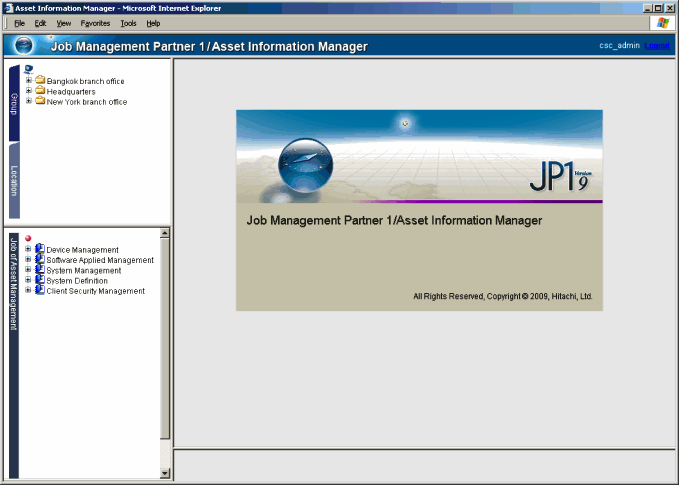

   The initial window of AIM appears.




(2) Creating a new user role for a CSC user

Create a user role from the Role window of AIM. For details about the Role window, see the manual Job Management Partner 1/Asset Information Manager Planning and Setup Guide.

To create a user role:

1. From System Definition in the job menu, click Role.

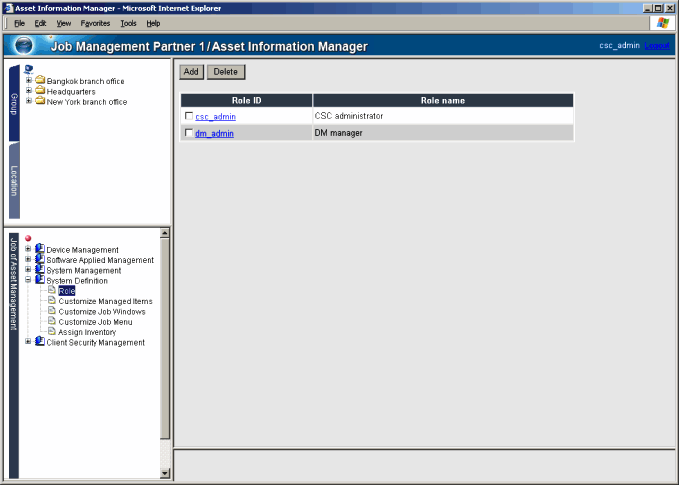

   The Role window is displayed.




2. In the Role window, click the Add button.

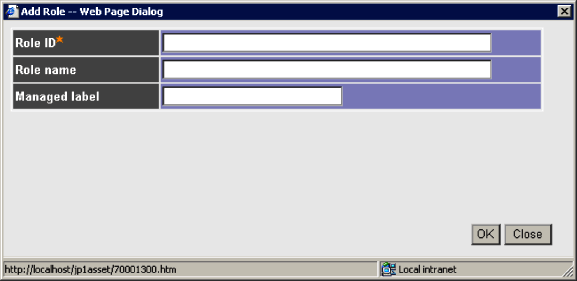

   The Add Role dialog box is displayed.




   Enter each item:


   Role ID

   Enter the role ID for the CSC user. This setting is required.

   Role name

   Enter the role name for the CSC user. A role with an existing name cannot be created. If this item is omitted, the value set for Role ID is used for the name.

   Managed label

   Set this to limit access to each group hierarchy.

3. Click the OK button.
   The user role for the CSC user is created.


(3) Assigning jobs that a CSC user can use

Assign jobs for the CSC user to use. You can assign jobs from the Customize Job Menu window of AIM. For details about this window, see the manual Job Management Partner 1/Asset Information Manager Planning and Setup Guide.

To allocate a job to a CSC user:

1. From System Definition in the job menu, click Customize Job Menu.

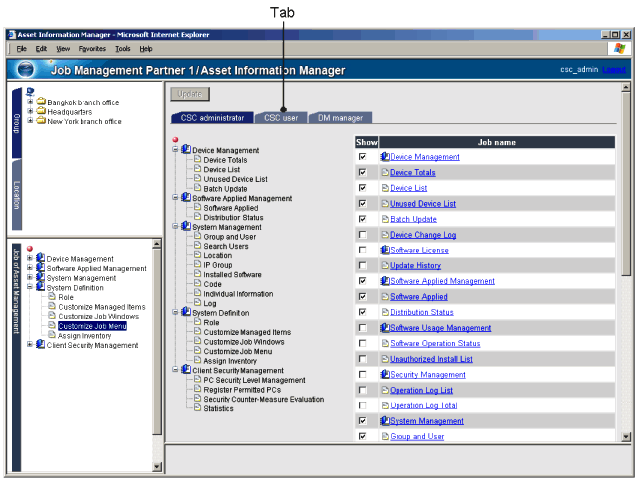

   The Customize Job Menu window is displayed.




2. Click the new CSC user tab created for the user role of the CSC user.
   A window is displayed for allocating CSC user jobs.

3. Select the Show check boxes for the job names PC Security Level Management, Security Counter-Measure Evaluation, and Statistics.
   Make sure that the Show check boxes for all other job names are cleared.

4. Click the Update button.
   In the operation window for users with the CSC user role, only the job names PC Security Level Management, Security Counter-Measure Evaluation, and Statistics are displayed.


(4) Limiting the GUI buttons that CSC users can use

By limiting the GUI buttons that are shown, the window operations of CSC users can be restricted. You can change the buttons that are shown by using the Customize Job Windows window of AIM. For details about this window, see the manual Job Management Partner 1/Asset Information Manager Planning and Setup Guide.

To change the display of the GUI buttons used for PC Security Level Management:

1. From System Definition in the job menu, click JobCustomize Job Windows.

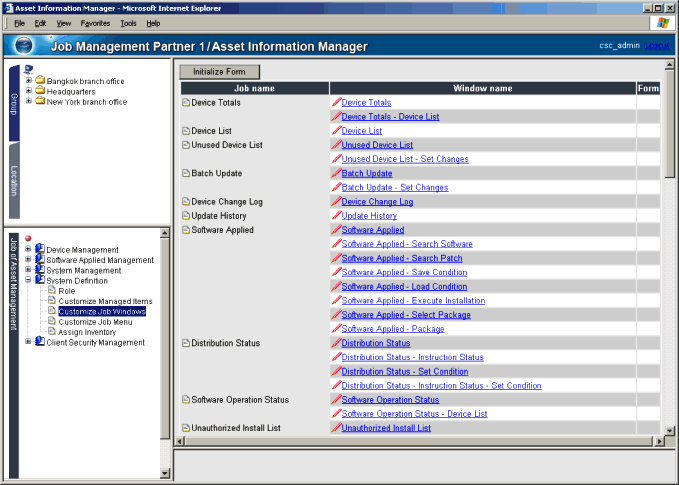

   The Customize Job Windows window is displayed.




2. Click the anchor (underlined link) for which the window name is PC Security Level Management.

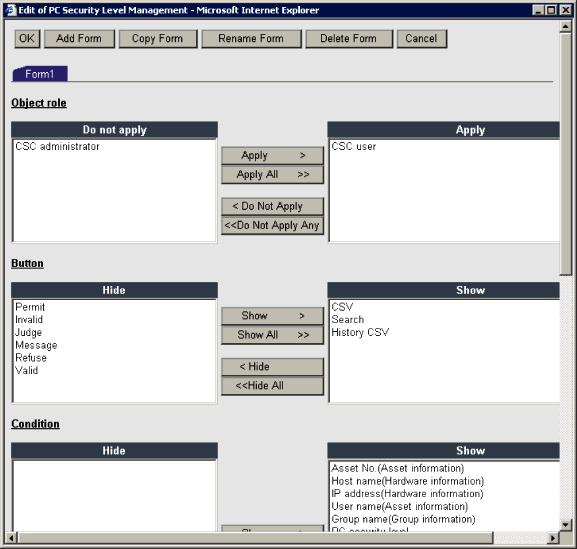

   The Edit Form window is displayed.




3. From the list in Do not apply for Object role, select CSC user, and then click the Apply button.
   CSC user is moved to the Apply list, and the object role is set.

4. From the list in Show for Button, select the following buttons, and then click the Hide button.
   See Table 5-10 Client security management functions that a CSC administrator can execute, and select the buttons not to be used by the CSC user. We recommend the following buttons to be selected:

   • Judge
   • Message
   • Permit
   • Refuse
   • Valid
   • Invalid
   The selected buttons are moved to the Hide list, and will be hidden from user window operations for the CSC user role.

5. Click the OK button.
   The changed form is reflected in the window.


You do not need to limit the GUI buttons shown in the windows for the Security Counter-Measure Evaluation and Statistics jobs, because these jobs use functions that only reference data.

Note

When you upgrade the version of JP1/CSC - Manager, you must delete all the forms of Customize Job Windows for PC Security Level Management, and then set them again. To delete a form, in the Edit Form window shown in step 2, choose the form tab you want to delete, and click the Delete form and then the OK buttons.

(5) Registering a CSC user

Register a user with the CSC user role. You can register a user from the Group and User window of AIM. For details about this window, see the manual Job Management Partner 1/Asset Information Manager Administrator's Guide.

To register a new user:

1. From System Management in the job menu, click Group and User.
   The Group and User window is displayed.




2. Select the group to which you would like to add a user, from simple search condition.
   Users cannot be registered in the highest level group.

3. Click the Add User button.
   The Add User dialog box is displayed.
   Be sure to set the following items:

   • User ID
     Specify a user ID that is unique among users.

   • Password
     For confirmation, specify the same password twice.

   • User name
     Specify the user name.

4. Select the CSC user from Role.
5. Click the Add button.
   A user is added with the contents specified.
