Job Management Partner 1/Client Security Control Description, User's Guide and Operator's Guide
This subsection explains the procedures for setting up JP1/CSC - Manager Remote Option.
The Client Security Control - Manager Remote Option Setup dialog box has two tabbed pages, which can be selected by clicking the corresponding tab.

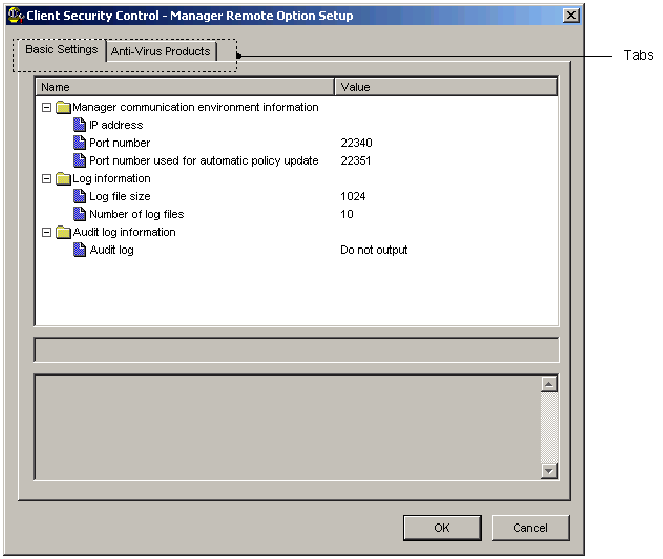

The following figure shows the Client Security Control - Manager Remote Option Setup dialog box.
Figure 5-10 Client Security Control - Manager Remote Option Setup dialog box
The following table lists the items that can be set in the Client Security Control - Manager Remote Option Setup dialog box.
Table 5-5 Items that can be set in the Client Security Control - Manager Remote Option Setup dialog box
To display the Client Security Control - Manager Remote Option Setup dialog box and edit the setting items:
- Click the Start button, and then choose Programs, Client Security Control, and Remote Option setup.
The dialog box is displayed.
- Click the tabs to set the item values.
When an item is selected, a box is displayed below the item list, in which you can either enter a value or string, or select a value from the drop-down list.
- Click the OK button.
The specified contents are set for the JP1/CSC - Manager Remote Option environment. The Client Security Control - Manager Remote Option Setup dialog box closes. To close the dialog box without making any settings, click the Cancel button.
- Organization of this subsection
- (1) Using the Basic Settings page
- (2) Using the Anti-Virus Products page
(1) Using the Basic Settings page
Use the Basic Settings page to display and change the environment settings information for JP1/CSC - Manager Remote Option.

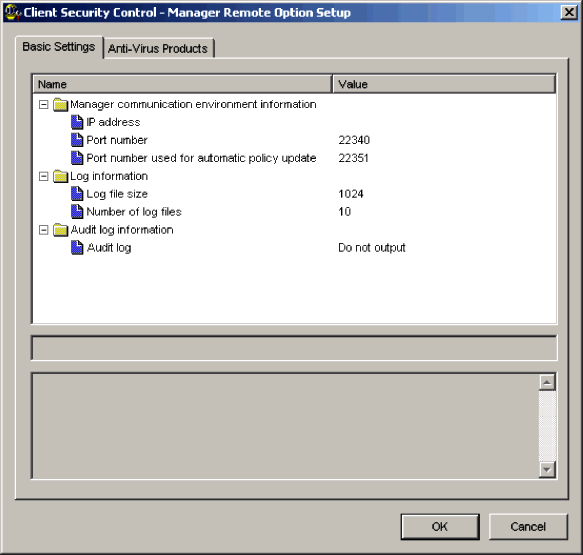

The following figure shows the Basic Settings page.
Figure 5-11 Basic Settings page
The following table describes the items that can be viewed and set in the Basic Settings page.
Table 5-6 Items that can be viewed and set in the Basic Settings page
Item Description Specifiable values Default Manager communication environment information IP address Specify the IP address of JP1/CSC - Manager. IPv4 format (xxx.xxx.xxx.xxx) N/A Port number The port number used by JP1/CSC - Manager.
Enter the same port number as specified for Port number for receiving requests under Manager communication environment information in the Client Security Control - Manager Setup dialog box.1024 to 65535 22340 Port number used for automatic policy update Specify the port number used by JP1/CSC - Manager to communicate with JP1/CSC - Manager Remote Option. 1024 to 65535 22351 Log information Log file size Specify the maximum size (in kilobytes) of the JP1/CSC - Manager Remote Option log files. 1 to 2097151 1024 Number of log files Specify the maximum number of JP1/CSC - Manager Remote Option log files to be created. 1 to 999 10 Audit log information Audit log Specify whether or not to output audit logs. Output / Do not output Do not output
- Legend:
- N/A: Not applicable
- Reference note
- The log information contains information about startup and termination of JP1/CSC - Manager Remote Option, as well as the results of implementing automatic policy updates and network connection control.
(2) Using the Anti-Virus Products page
Use the Anti-Virus Products page to make settings related to automatic policy update information, and to display information about linked anti-virus products.

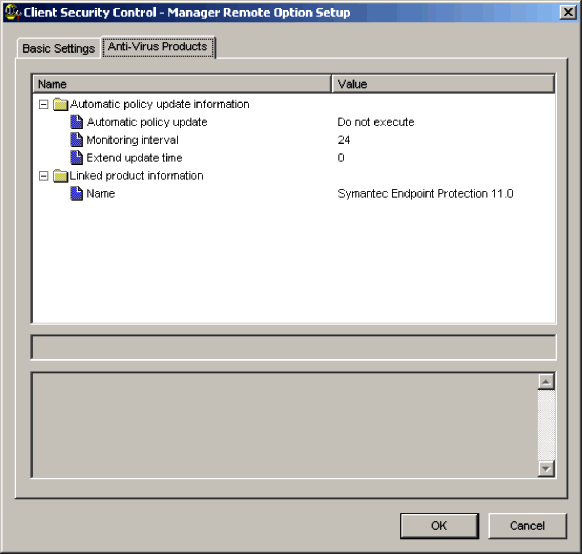

The following figure shows the Anti-Virus Products page.
Figure 5-12 Anti-Virus Products page
The following table describes the items that can be viewed and set in the Anti-Virus Products page.
Table 5-7 Items that can be viewed and set in the Anti-Virus Products page
Item Description Specifiable values Default Automatic policy update information Automatic policy update Specify whether to automatically update the judgment policies for anti-virus products by linkage with the anti-virus product installed on a remote management server. Execute/Do not execute Do not execute Monitoring interval Specify (in hours) the interval for monitoring the information for linked anti-virus products. 1 to 99999 24 Extend update time Specify the interval (in days) between the acquisition of the latest information about the anti-virus product and the automatic update of the judgment policy definition. 1 to 100 0 Linked product information Name Select the name of the anti-virus product installed on the remote management server. Name of the anti-virus product# Symantec Endpoint Protection 11.0
- #
- The name of an anti-virus product listed in Table 4-4 in 4.6 Installing anti-virus products that link with automatic judgment policy updating is displayed.
- Note
- To automatically update judgment policies by linkage with the anti-virus product installed on the client rather than the anti-virus product installed on the remote management server, set Do not execute for Automatic policy update.
- For the Name item under Linked product information, select the name of the anti-virus product installed on the remote management server. If you select the wrong name, the judgment policy may not be updated as intended.
Note that the name of an anti-virus product displayed by a client security management system might be different from the actual product name. For details about the correspondence between the anti-virus product names and the names displayed by the client security management system, see 4.6 Installing anti-virus products that link with automatic judgment policy updating.
