3.2.2 Registering a custom job

Register the files as custom jobs in the Register Custom Job dialog box of JP1/AJS - View.

To register a SAP BW system custom job:

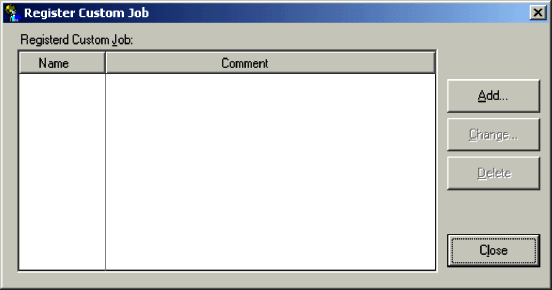

1. Display the Register Custom Job dialog box in JP1/AJS - View.




2. Choose the Add button.

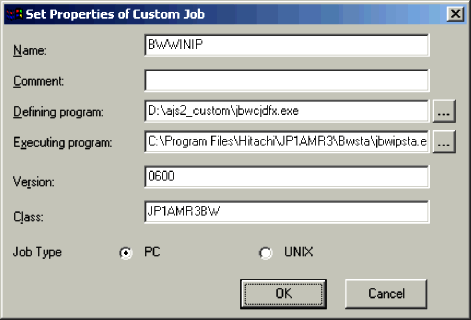

   The Set Properties of Custom Job dialog box is displayed.




3. Register the custom job for the SAP BW system.
   Specify information in the entry boxes of the dialog box as described below.


   Name

   Specify a name from 1 to 8 bytes for the custom job of JP1/AJS3 for EAP.

   Comment

   You can enter a comment from 1 to 40 bytes long. You cannot include slashes (/) and blank characters in comments. You can omit Comment.

   Defining program

   Specify the pathname of the custom job definition program (jbwcjdfx.exe) you have manually copied to JP1/AJS - View.

   Note

   You need not specify Defining program when you select UNIX in Job Type.

   Executing program

   Specify installation-folder\Bwsta\Program\jbwipsta.exe as the pathname of the program for executing the custom job on the JP1/AJS - Agent (or JP1/AJS - Manager) machine on which JP1/AJS3 for EAP is installed.

   Note

   You need not specify Executing program when you select UNIX in Job Type.

   Version

   Specify 0600.

   Class

   Specify JP1AMR3BW.

   Job Type

   Select PC if the JP1/AJS - Agent (or JP1/AJS - Manager) machine on which JP1/AJS3 for EAP is installed is a Windows machine. Select UNIX if it is a UNIX machine.

4. Choose the OK button.

For more details on how to register custom jobs, see the manual Job Management Partner 1/Automatic Job Management System 3 Operator's Guide.
