Job Management Partner 1/Automatic Job Management System 3 for Enterprise Applications Description, User's Guide and Reference

2.2.4 Adding R/3 system entries to the services file

Add the service name and the port number of the connection destination message server in the services file when you connect a message server.

The following table describes the specification format for the service name and the port number of the message server to be connected.

Table 2-7 Specification format for the service name and port number

Item	Service name	Port number
Message server	sapmssid#	Any/tcp

#

Specify the system ID of the R/3 system for sid in sapmssid.

For example, if the system ID of the connection destination message server is SD1 and the port number of the message server is 3601/tcp, add the following entry (server name and port number) to the services file:

sapmsSD1 3601/tcp

The following figure shows typical additions to the R/3 system entries.

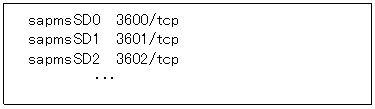

Figure 2-3 Example of adding R/3 system entries (services file)
