5.2 Monitoring tree model for the server-oriented tree

The following figures show the monitoring tree model that is generated when the server-oriented tree template is selected for generating a monitoring tree automatically.

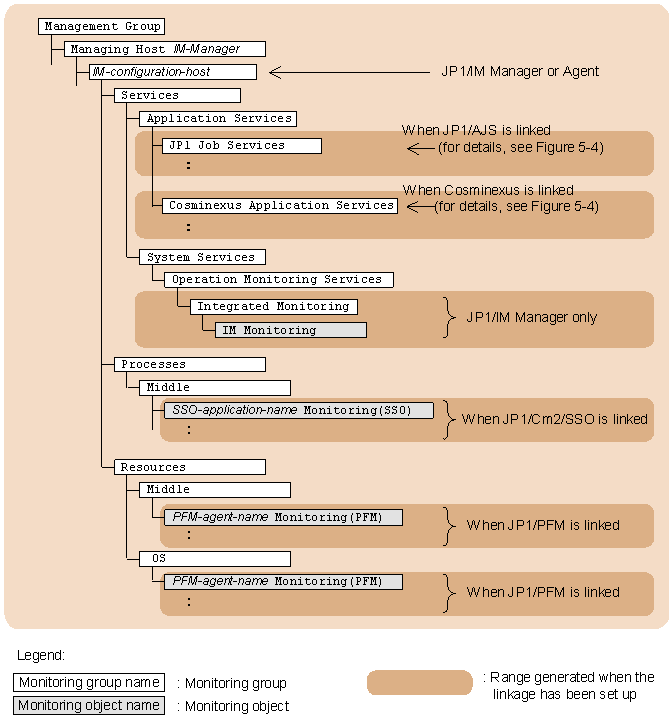

Figure 5-3 Monitoring tree model (server-oriented tree template)

[Figure]

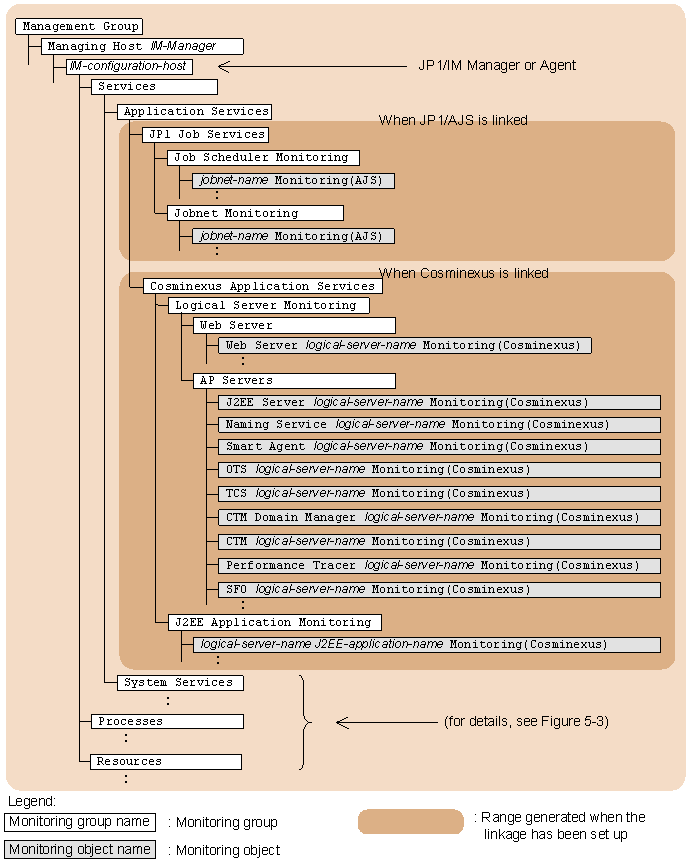

Figure 5-4 Monitoring tree model (server-oriented tree template)

[Figure]
