12.3.4 Configuration for monitoring JP1 events from a Web browser

JP1 events can be monitored in JP1/IM using a Web browser. In this case, JP1/IM - View is not required on the viewer.

However, the following limitations apply when you use a Web browser:

You cannot connect to JP1/IM - Manager (JP1/IM - Central Scope).

You cannot access windows such as the Execute Command window and Tool Launcher window. There are also operational limitations: You cannot invoke the monitor startup to launch linked applications, and you cannot save event list information (as CSV snapshots). For details about browser limitations, see 1. Window Transitions and Login Window in the manual Job Management Partner 1/Integrated Management - Manager GUI Reference.

Some limits are different. See D. Limits for details.

A system configuration example is shown below.

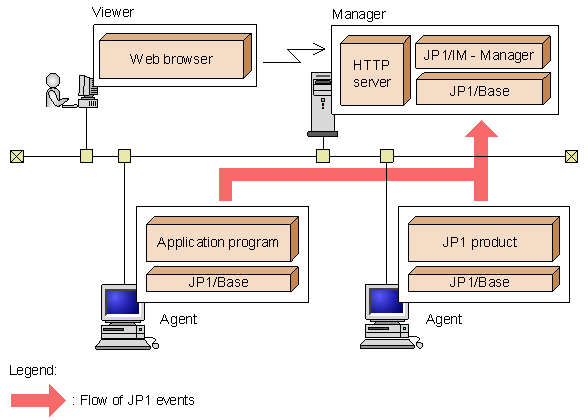

Figure 12-6 Example of configuration for monitoring JP1 events from a Web browser

The following products are required on each host:

Manager

JP1/IM - Manager

JP1/Base

HTTP server

Agents

JP1/Base

JP1-series products, application program, and so on

Viewer

Web browser
The Java Runtime Environment (JRE) and bundled plug-ins are required in the Web browser to monitor JP1 events. For details, see the JP1/IM - Manager Release Notes.
