Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide

11.3.3 Considerations for executing commands from JP1/IM - View

You can remotely execute a command on a JP1/IM agent from JP1/IM - View. The following types of commands can be executed:

On a UNIX host: UNIX commands and shell scripts

On a Windows host: Executable files (.com and .exe), batch files (.bat), and JP1/Script script files (.spt)
Commands that require interactive operation or open a window, non-terminating commands, and commands that shut down JP1/Base cannot be executed in this way.

For details, see the following references:

About command execution from JP1/IM - View:

Command execution from JP1/IM - View
See 3.12.3 Executing commands from JP1/IM - View.

Overview of the command execution environment
See 7.4.4 Managing command execution.

Overview of the system configuration definition and its effects
See 7.4.3 Managing the system hierarchy.

Reference note

Commands that directly shut down the OS cannot be executed from JP1/IM - View. However, you can use JP1/Power Monitor to shut down agents.

Organization of this subsection

(1) Notes

(1) Notes

The length of the commands that can be executed from JP1/IM - View is restricted by the system in which JP1/IM and JP1/Base are running.
When the command execution path from JP1/IM - View includes a host (including a manager to which JP1/IM - View connects or the target host on which the command is executed) that is running JP1/IM or JP1/Base version 6 or 7, the command must not exceed 1,024 bytes. (When all the hosts on the path are running JP1/IM and JP1/Base version 8 or later, you can specify commands to a maximum length of 4,096 bytes.) When version 6 and version 7 products coexist in the system, command execution fails if the specified command exceeds 1,024 bytes. The command is not executed, and message KAVB2623-E appears in the Message field of the Log area in the Execute Command window.

Example 1:

When the managers to which JP1/IM - View connects are running JP1/IM and JP1/Base version 8, but JP1/Base on the target host is version 7, the maximum command length is 1,024 bytes.

Example 2:

When JP1/IM and JP1/Base on the manager and JP1/Base on the target host are all version 8, the maximum command length is 4,096 bytes.

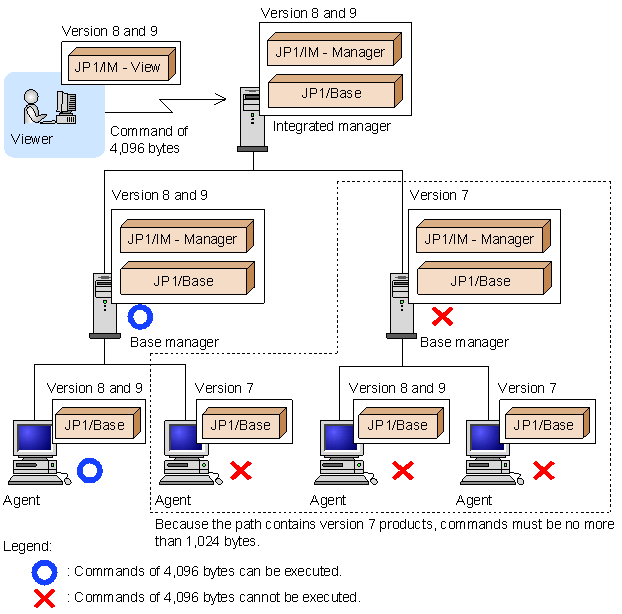

Figure 11-23 Command length restrictions according to the version of JP1/IM and JP1/Base on the execution path
