11.2.2 Considerations for visual monitoring

Using the Visual Monitoring window, you arrange the objects and groups that you want to watch closely in a map view. This allows you to easily monitor even a large system from key perspectives.

By customizing the background image and Visual Icon in the Visual Monitoring window with images of your choice, you can create a window that is tailored to your particular needs. The following figure shows an example of a customized Visual Monitoring window.

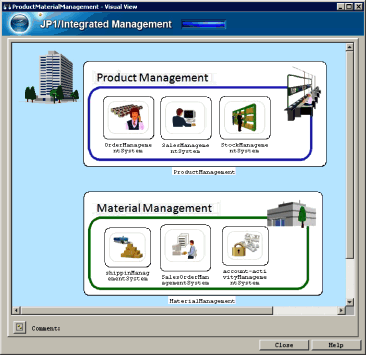

Figure 11-20 Example of Visual Monitoring window customized with background image and Visual Icon

For details, see the following reference:

About visual monitoring:

• Visual monitoring functionality
  See 4.5 Visual monitoring.
