6.6.2 Displaying a virtualization configuration

You can display a virtualization configuration in the tree display area on the Host List page of the IM Configuration Management window.

The figure below shows an example of displaying a virtualization configuration in IM Configuration Management - View.

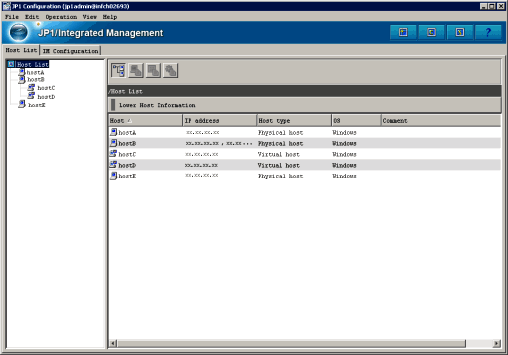

Figure 6-32 Example of displaying a virtualization configuration in IM Configuration Management - View

When you import host information from a VMware ESX virtualization configuration, the host information, IM configurations, and profiles held by IM Configuration Management are deleted. To manage profiles, you must collect the host information, IM configurations, and profiles after importing the VMware ESX information.

To collect this information:

1. Navigate to the Host List page of the IM Configuration Management window.
2. In the tree display area, click Host List and select all the hosts in the Lower Host List.
3. From the Operation menu, choose Collect Host Information.
4. From the Operation menu, choose Collect IM Configuration.
5. From the Operation menu, choose Batch Collect Profiles.
