6.2.3 Displaying the system hierarchy

Using IM Configuration Management, you can display the configuration definition information held in the IM Configuration Management database. The information appears on the IM Configuration page of the IM Configuration Management window.

The figure below shows the flow of processing when displaying the system hierarchy with IM Configuration Management.

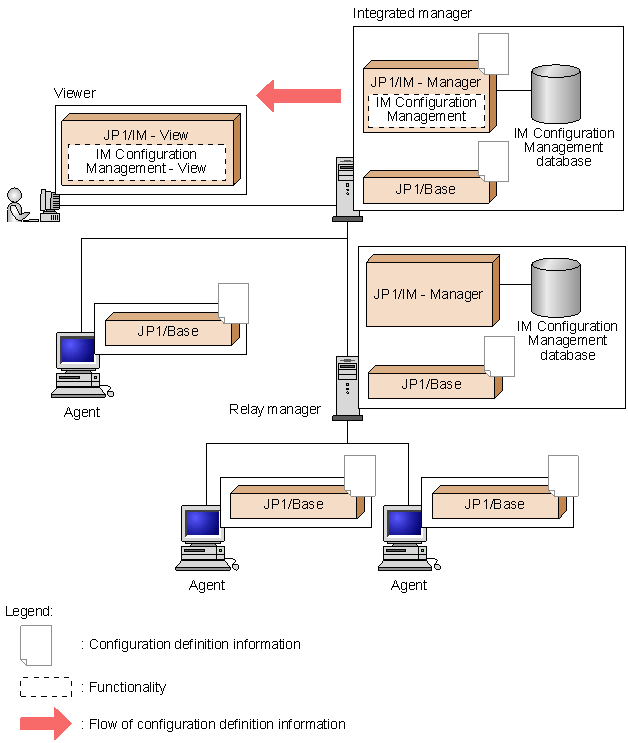

Figure 6-14 Displaying the system hierarchy with IM Configuration Management

[Figure]
