6.1.5 Changing host information

Using IM Configuration Management, you can change the host information registered in the IM Configuration Management database.

To change host information, use the Edit Host Properties window.

The figure below shows the flow of processing when changing host information with IM Configuration Management.

Figure 6-6 Changing host information with IM Configuration Management

The host and host information that you change in the Edit Host Properties window is registered in the IM Configuration Management database.

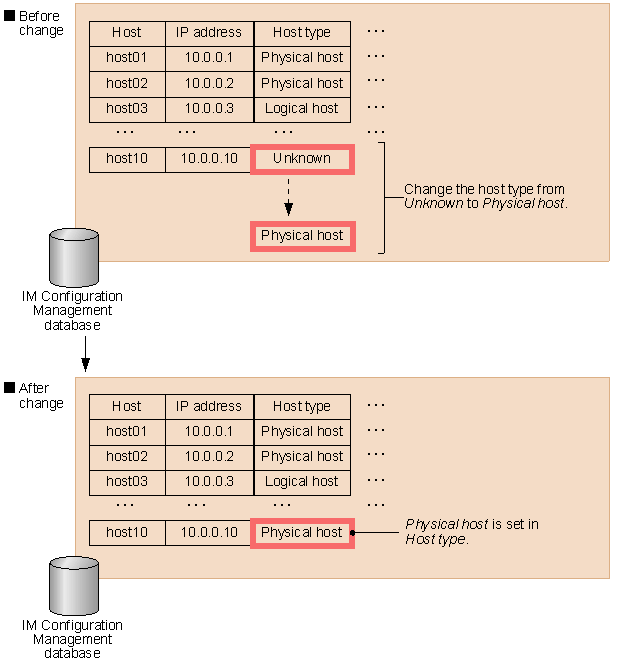

The figure below shows an example of the host information registered in the IM Configuration Management database after a property is changed.

Figure 6-7 Example of host information registered in the IM Configuration Management database after a property is changed

You cannot change the host type in the following cases:

• Physical host
  If the physical host is being used as a VMM host in a virtual host, you cannot change its host type.

• Physical host or Virtual host
  If the host is being used as an active host or standby host in a logical host, you cannot change its host type to Logical host or Unknown.
