Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide

3.9.3 Copying JP1 event information and action execution results to the clipboard

In JP1/IM, you can copy selected JP1 event information and action execution results to the clipboard in CSV format. You can then make temporary use of the information. For example, you can copy information about a JP1 event triggered by a major error into a text editor or the body of an email.

The clipboard feature is enabled by default. For the procedure to enable or disable copying to the clipboard, see 4.11 Customizing the JP1/IM - View operation in the Job Management Partner 1/Integrated Management - Manager Configuration Guide.

The following describes the windows and types of information that you can copy to the clipboard, and the output format and output items.

Organization of this subsection

(1) Target windows and types of information

(2) CSV image and format

(3) CSV output items

(4) Notes

(1) Target windows and types of information

You can copy the following types of information to the clipboard:

JP1 event information

Action log

Command log

The clipboard feature can be used in all windows in which these types of information are displayed. The following table lists the applicable windows and display items.

Table 3-12 Applicable windows and display items when copying to the clipboard

Window name Display item Information

Event Console window

Monitor Events page

Severe Events page

Search Events page

List of events JP1 event information

Event Details window Event attributes JP1 event information
(detailed information)

Related Events (Summary) window

Display Items

Related Events

JP1 event information

Related Events (Correlation) window

Display Items

Related Events

JP1 event information

Action Log window Log Action log

Action Log Details window Log Action log
(detailed information)

List of Action Results window Log Action log

Execute Command window Log Command log

In the Event Console window, you can copy information to the clipboard by choosing Edit and then Copy, or by pressing the Ctrl+C keys. In all other windows, press the Ctrl+C keys to copy selected information to the clipboard.

Window name	Display item	Information
Event Console window Monitor Events page Severe Events page Search Events page	List of events	JP1 event information
Event Details window	Event attributes	JP1 event information (detailed information)
Related Events (Summary) window	Display Items Related Events	JP1 event information
Related Events (Correlation) window	Display Items Related Events	JP1 event information
Action Log window	Log	Action log
Action Log Details window	Log	Action log (detailed information)
List of Action Results window	Log	Action log
Execute Command window	Log	Command log

(2) CSV image and format

Information copied to the clipboard can be output in CSV format, in the same order as displayed in JP1/IM - View. The display item names are added as header information to identify the items.

The following figure shows the CSV output.

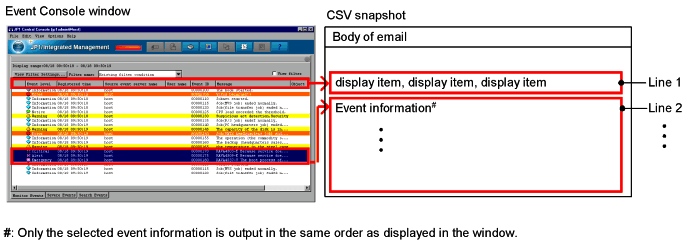

Figure 3-38 CSV clipboard image

Line 1 is the display item names corresponding to the information selected in JP1/IM - View, separated by commas.

Line 2 and subsequent lines are the selected information, separated by commas and following the order of the display item names in line 1.

The CSV output format is as follows:
Items are separated by commas (,).
item1,item2,item3,item4,item5,...
Lines are separated by linefeed codes (CRLF).
item1,item2,item3,item4,item5,...(CRLF)
item1,item2,item3,item4,item5,...(CRLF)
Any item containing a comma (,) is enclosed with double quotation marks (").
item1,"item,2",item3,item4,item5,...
Any item containing a control character (0x00 to 0x1F, and 0x7F to 0x9F) is enclosed with double quotation marks (").
item1,"item(0x00)2",item3,item4,item5,...
When an item contains a double quotation mark ("), another double quotation mark is inserted before it, and the whole is enclosed with double quotation marks (").
item1,"item""2",item3,item4,item5,...
Empty items are shown as blank (nothing is entered).
item1,,item3,item4,item5,...

(3) CSV output items

The following describes the items and contents that are copied to the clipboard.

JP1 event information

The contents output when copying JP1 event information to the clipboard are the same as the contents output to line 2 and subsequent lines when saving an event listing as a CSV snapshot. For details, see Table 3-10 Contents output to the body of a snapshot. As there is no header information, the display item names are output to line 1, and the event information is output to line 2 onward.

Action log

The following table describes the contents output as an action log.

Table 3-13 Contents output as an action log

Display item name Output contents

Type^# The icons in the window are converted into character strings and output as follows:
-> Command
-> Rule

Action serial number The character string displayed in the window is output.

Action The character string displayed in the window is output.

Host The character string displayed in the window is output.

Status The character string displayed in the window is output.

Delay The character string displayed in the window is output.

Registered time Output in the following format:
YYYY/MM/DD hh:mm:ss

Event arrival time Output in the following format:
YYYY/MM/DD hh:mm:ss

End time Output in the following format:
YYYY/MM/DD hh:mm:ss

Return code The character string displayed in the window is output.

#: Output only when linked with JP1/IM - Rule Operation.

Command log

The following table describes the contents output as a command log.

Table 3-14 Contents output as a command log

Display item name Output contents

Time Output in the following format:
YYYY/MM/DD hh:mm:ss

Host The character string displayed in the window is output.

Message The character strings displayed in the window are output.

JP1 event information (details) or action log (details)

The following table describes the contents output as detailed information about a JP1 event or an action log entry.

Table 3-15 Contents output as detailed information

Display item name Output contents

Attribute name The character string displayed in the window is output.

Attribute value The character string displayed in the window is output.
If the time is displayed as the attribute value, it is output in the following format:
YYYY/MM/DD hh:mm:ss

Display item name	Output contents
Type^#	The icons in the window are converted into character strings and output as follows: -> Command -> Rule
Action serial number	The character string displayed in the window is output.
Action	The character string displayed in the window is output.
Host	The character string displayed in the window is output.
Status	The character string displayed in the window is output.
Delay	The character string displayed in the window is output.
Registered time	Output in the following format: YYYY/MM/DD hh:mm:ss
Event arrival time	Output in the following format: YYYY/MM/DD hh:mm:ss
End time	Output in the following format: YYYY/MM/DD hh:mm:ss
Return code	The character string displayed in the window is output.

Display item name	Output contents
Time	Output in the following format: YYYY/MM/DD hh:mm:ss
Host	The character string displayed in the window is output.
Message	The character strings displayed in the window are output.

Display item name	Output contents
Attribute name	The character string displayed in the window is output.
Attribute value	The character string displayed in the window is output. If the time is displayed as the attribute value, it is output in the following format: YYYY/MM/DD hh:mm:ss

(4) Notes

Note the following when copying displayed information to the clipboard:

The functionality is not supported in the Web-based JP1/IM - View.

If you want to copy information to the clipboard by pressing the Ctrl+C keys, make sure that the functionality is enabled. It is enabled by default.

The information copied to the clipboard is the item selected in the window that has the focus when you perform a copy operation by choosing a command or by pressing the shortcut keys. The selected information is not copied if it was changed to an unselected state as the result of an auto-refresh action that scrolled the item out of view before it was copied.

When the amount of information to be copied to the clipboard exceeds the maximum memory usage, the copy processing is canceled and the information is not copied.
