Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide

3.5 Searching for events

In JP1/IM, you can search for JP1 events registered with JP1/Base using various search conditions, and display them on the Search Events page of the Event Console window. When you use the integrated monitoring database, you can display JP1 events registered with the integrated monitoring database on the Search Events page of the Event Console window. As well as JP1 event attributes, the search conditions might include the response status of severe events and whether or not an automated action has been executed. You can also use regular expressions for some types of searches.

As the host on which to search, you can specify not only the manager that you are logged in to, but also a remote host on which JP1/Base is installed.

When you use the integrated monitoring database, you can specify which database to search. You can specify either the integrated monitoring database or the JP1/Base event database.

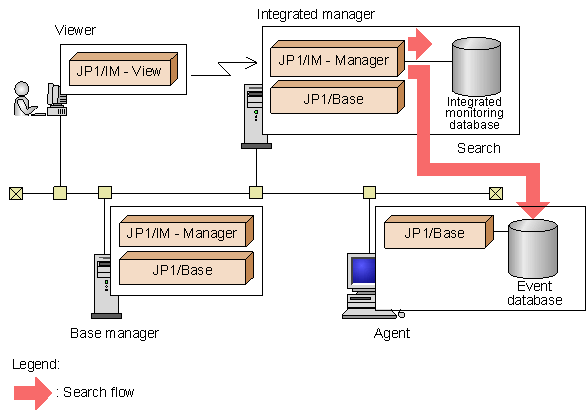

Figure 3-29 Overview of event searching

The following describes JP1 event searches and search conditions, followed by a description of the flow of processing when searching for events.

Organization of this section

3.5.1 Searching for JP1 events

3.5.2 Event search conditions

3.5.3 Flow of processing of event searching
