2.2.2 Functionality for error detection

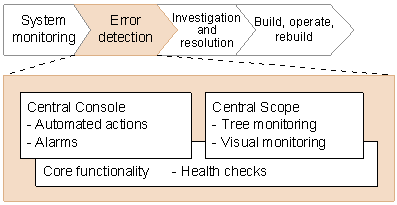

The following figure shows the functionality for detecting errors.

Figure 2-4 Functionality for error detection

The components used for detecting problems in the system are the Central Console, Central Scope, and the core functionality.

In the Central Console, you can set automated actions in advance to detect errors. An automated action is the automatic execution of a command which is defined in advance and triggered when a particular event is received. This mechanism can be used for reporting problems to the administrator by email or other means.

The Central Scope provides tree monitoring and visual monitoring. A JP1 event can be issued from the Central Scope whenever the status of a monitoring node changes, and an automated action can be executed through the Central Console in response to an issued JP1 event. Severe events can be reported by using alarms, and the impact of any errors can be visually represented by changing the icons in the monitoring tree to error status.

The health check provided by the core functionality issues a message or JP1 event whenever an error occurs in a JP1/IM - Manager process. It can also issue a message or JP1 event when an error occurs in a JP1/Base process on the local host or remote host.
