Job Management Partner 1/Integrated Management - Manager Overview and System Design Guide

1.3.7 Integrated management of the system hierarchy and host settings

Using the IM configuration management viewer provided by IM Configuration Management, you can centrally manage from the manager host the hierarchical structure and host settings of the systems managed by JP1/IM. To use IM Configuration Management, you must set up the IM Configuration Management database.

IM Configuration Management provides the following functionality:

• Host management
  You can register the hosts in the network as management targets with IM Configuration Management. You can also manage host information, such as the host name and IP address of each registered host.

• Management of the system hierarchy
  You can define the hierarchical structure of the system managed by JP1/IM, and apply information about the hierarchy (configuration definition information) to the system as a whole.

• Profile management
  You can check and edit the user definition information (profiles) set in JP1/Base on the hosts in the system managed by JP1/IM.

• Management of service activity information
  You can check whether the services on the managed hosts are active.

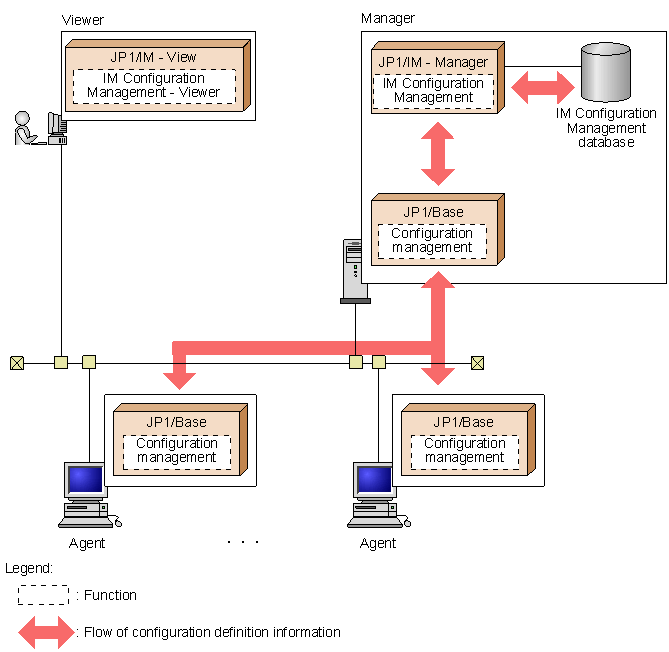

  Figure 1-11 Integrated management of the system hierarchy and host settings
