jr3alget

Format

jr3alget    [RFC-connection-information]
            [target-information]
            [-lasttime timestamp-file-name]
            [output-destination]
            [-cnf environment-parameters-file-name]
            [-help]
            [-v]

Function

The jr3alget command extracts the CCMS alert information of the SAP system.

Host that can execute the command

PFM - Agent for Enterprise Applications

Execution permissions

In Windows:

None

In UNIX:

None

Command installation directory

In Windows

installation-folder\agtm\evtrap\

In UNIX

/opt/jp1pc/agtm/evtrap/

Arguments

RFC-connection-information

Specifies the information needed to establish RFC connection with the SAP system for command execution.

You can omit specification of this argument if you have specified the RFC connection information in the environment parameters file (CONNECT section). If the RFC connection information is specified in both the environment parameters file and the command, the command specification takes effect. For details about the environment parameters file, see 6.4.3 Environment parameters file for extracting CCMS alert information by command execution.

The following describes the RFC information argument:

-h application-server-host-name

Specifies as 1-100 single-byte alphanumeric characters the name of the connection-target application server host. You must specify one of the following:

Host name specified in the hosts file

IP address

SAP router address

You can verify the application server host name by transaction code SM51.

When you specify this option, you must also specify the -s option.

-s system-number

Specifies the system number for identification by the application server host specified with the -h option. You must specify a value in the range 0-99.

When you specify this option, you must also specify the -h option.

-c client-name

Specifies as 1-3 bytes the client name of the user that is to be used for connection. You must specify a value in the range 0-999.

When you specify this option, you must also specify the -u option together with the -p or -p2 option.

-u user-name

Specifies as 1-12 single-byte alphanumeric characters the user name that is to be used for connection.

When you specify this option, you must also specify the -c option together with the -p or -p2 option.

For details about the SAP users that can be specified, see SAP users used for establishing connection.

-p password

Specifies the password for the user specified in the -u option. The permitted value is 1-8 single-byte characters.

This option and the -p2 option are mutually exclusive.

When you specify this option, you must also specify the -c and -u options.

For details about the characters permitted for the password, see SAP users used for establishing connection.

-p2 extended-password

If you are connecting to an SAP system that uses SAP NetWeaver 7.0 or later as its base system and that supports extended passwords, this option specifies the extended password for the user specified in the -u option. The permitted value is 1-40 single-byte characters. This value is case sensitive.

This option and the -p option are mutually exclusive.

When you specify this option, you must also specify the -c and -u options.

For details about the characters permitted for the extended password, see SAP users used for establishing connection.

-l language

Specifies the language for the user specified with the -u option. You must specify a double-byte ISO ID or a single-byte language key used in the SAP system. For example, to use English, specify EN.

If you omit this option, the user's language used in the connection-target system is assumed.

When you specify this option, you must also specify the -c option, the -u option, and the -p or -p2 option.

-codepage code-page

Specifies the code page to be used when character encoding is converted in the Unicode version of the SAP system.

The code page must be specified together with a language in the -l option.

Specify the combination of language and code page as shown below. If any other combination of language and code page is specified, an encoding error may occur in the information acquired from the SAP system.

Table 10-3 Combination of language and code page specifications

Connection-target SAP system Connection language Language (-l) Code page (-codepage)

Unicode version English EN No need to specify. If you specify a code page, specify 1100.

Non-Unicode version English EN No need to specify. If you specify a code page, specify 1100.

To set the code page to be used to convert character codes at the connection-target SAP system (Unicode version), you can also use the SAP_CODEPAGE environment variable provided by the SAP system. If the code page setting is specified in both the SAP_CODEPAGE environment variable and in this option, this option takes effect.

If this option is omitted, the connection-target system's default code page is assumed.

When you specify this option, you must also specify the -c option, the -u option, and the -p or -p2 option.

target-information

Specifies information that identifies the CCMS alert information that is to be extracted.

You can omit specification of this argument if you have specified the target information in the environment parameters file (TARGET section). If target information is specified in both the environment parameters file and the command, the command specification takes effect. For details about the environment parameters file, see 6.4.3 Environment parameters file for extracting CCMS alert information by command execution.

The following describes the target information argument:

-ms monitor-set-name

Specifies as 1-60 single-byte alphanumeric characters the monitor set name. The monitor set name is displayed as CCMS monitor set on the Alert Monitor (transaction code RZ20) of the SAP system.

When you specify this option, you must also specify the -mn option.

-mn monitor-name

Specifies as 1-60 single-byte alphanumeric characters the monitor name defined in the monitor set. The monitor name is displayed in the tree of the CCMS monitor set on the Alert Monitor (transaction code RZ20) of the SAP system.

When you specify this option, you must also specify the -ms option.

-lasttime timestamp-file-name

If only the CCMS alert information that was output after the previous command execution is to be extracted, this option specifies the name of the timestamp file used for managing the previous extraction time.

The permitted value is 1-255 characters.

If you specify a relative path, make sure that it is relative to the work directory for the command. If you have not specified a work directory for the command in the WORKDIR label of the COMMAND section in the environment parameters file, specify the path relative to the current directory.

If you omit this option, the system assumes the period from 00:00:00 to 23:59:59 on the command execution date.

If the specified timestamp file does not exist the first time the command is executed with this argument specified, a new timestamp file is created. CCMS alert information is not output during such a first-time execution.

output-destination

Specifies the output destination of the CCMS alert information. When you omit this argument, CCMS alert information separated by linefeed codes is output to the standard output.

The following describes the output destination argument:

-x output-file-name

Specifies as a character string of 1-255 bytes the name of the file to which the CCMS alert information is to be output.

If you specify a relative path, make sure that it is relative to the work directory for the command. If you have not specified a work directory for the command in the WORKDIR label of the COMMAND section in the environment parameters file, specify the path relative to the current directory.

This is a wraparound file, which means that data is overwritten from the beginning of the file when the file capacity reaches a specified value. There is a header line of management information at the beginning of the file.

The default file size is 1,024 kilobytes. To change the file size, use the SIZE label in the EXTRACTFILE section of the environment parameters file.

A management file named output-file-name.ofs is created in the same directory as the specified output file (e.g., if the output file name is ALERT, the ALERT.ofs file is created as a management file separately from the ALERT file). If you delete the output file, you must also delete this management file.

The -x and -x2 options are mutually exclusive.

-x2

Specifies that the CCMS alert information is to be output to the file that is specified with the X2PATH parameter in the EXTRACTFILE section of the environment parameters file.

The -x and -x2 options are mutually exclusive.

-cnf environment-parameters-file-name

Specifies as a character string of 1-255 bytes the name of the environment parameters file that is to be referenced by the command.

If you specify a relative path, make sure that it is relative to the current directory for the command.

If you omit this argument, the system assumes jr3alget.ini, which is the default environment parameters file in the current directory. If there is no default environment parameters file, PFM - Agent for Enterprise Applications assumes the default settings for an environment parameters file.

For details about the environment parameters file and the default settings, see 6.4.3 Environment parameters file for extracting CCMS alert information by command execution.

-help

Specifies that the usage of the jr3alget command is to be displayed at the standard output.

-v

Specifies that a message indicating the processing status of the jr3alget command is to be output to the standard output. If you omit this option, no message indicating the processing status of the command will be output.

Connection-target SAP system	Connection language	Language (-l)	Code page (-codepage)
Unicode version	English	EN	No need to specify. If you specify a code page, specify 1100.
Non-Unicode version	English	EN	No need to specify. If you specify a code page, specify 1100.

SAP users used for establishing connection

To collect CCMS alert information, the jr3alget command executes the external management interfaces defined in the SAP system using RFC (communication protocol of SAP AG). Therefore, you must provide in advance the users who are to be used by the jr3alget command for establishing connection in the SAP system.

This subsection describes the user types, passwords, and authorizations for the SAP users who are created in the SAP system.

User types

The following types of SAP users can be used by PFM - Agent for Enterprise Applications:

Dialog

System

Communication

Service

Characters permitted for passwords

A password for an SAP user must consist of single-byte numeric characters (from 0 to 9), single-byte alphabetic characters (from a to z, A to Z), and the following single-byte symbols:

!, @, $, %, &, /, (, ), =, ?, ', `, *, +, ~, #, -, _, ., :, {, [, ], }, <, >, |

Required authorizations

You must set the following authorizations (authorization objects) for the SAP users:

Authorizations required for a user to establish RFC connection with function modules (S_RFC)

Authorizations required in order to use external management interfaces (S_XMI_PROD)

The authorization values are shown in the tables below or you can use the built-in configurations (S_RFC_ALL and S_XMI_ADMIN) that specifies XAL for all items.

Table 10-4 Authorizations required for a user to establish RFC connection with function modules (S_RFC)

Authorization Description Value

RFC_TYPE Type of RFC object to be protected FUGR (function group)

RFC_NAME RFC name to be protected *

ACTVT Activity 16 (execution)

Table 10-5 Authorizations required in order to use external management interfaces (S_XMI_PROD)

Authorization Description Value

EXTCOMPANY Company name of the external management tool HITACHI

EXTPRODUCT Program name of the external management tool JP1

INTERFACE Interface ID XAL

Authorization	Description	Value
RFC_TYPE	Type of RFC object to be protected	FUGR (function group)
RFC_NAME	RFC name to be protected	*
ACTVT	Activity	16 (execution)

Authorization	Description	Value
EXTCOMPANY	Company name of the external management tool	HITACHI
EXTPRODUCT	Program name of the external management tool	JP1
INTERFACE	Interface ID	XAL

Note

Because the CCMS alert information is treated as an SAP system resource and can be referenced from any application server, the connection target can be any application server. Make sure that only one command is executed per SAP system.

Output format and contents

The following is the default output format for CCMS alert information, where < > enclose a field ID:

If the value of a CCMS alert information item is shorter than the predefined field length, the remaining area is padded with single-byte spaces. The following table lists and explains the values that are output:

Table 10-6 CCMS alert information that is output

Field ID Description Source Length (bytes)

<ALSYSID> Name of the SAP system Alert ID (AID)
(BAPIAID) 8

<MSEGNAME> Name of the monitoring segment 40

<ALUNIQNUM> Unique ID used by AID 10

<ALERTDATE> Date the alert occurred (YYYYMMDD) 8

<ALERTTIME> Time the alert occurred (HHMMSS) 6

<MTSYSID> Name of the SAP system ID of the MTE associated with the alert (TID)
(BAPITID) 8

<MTCLASS> MTE type 3

<MTNUMRANGE> Range of numbers (such as resident or temporary) 3

<MTMCNAME> Name of the monitoring context 40

<MTUID> Unit ID used by TID 10

<VALUE> Warning value (corresponding to the color of the CCMS alert entry that can be viewed with transaction code RZ20):

0: Gray (invalid information)

1: Green (OK)

2: Yellow (warning)

3: Red (problem or error)

Alert severity level (BAPIALDATA) 11

<SEVERITY> Severity level (0-255; severity increases as the value increases)

<FIELDNAME> Abbreviation of MTE General property (BAPIALERT) 40

<STATUS> Alert status 11

<OBJECTNAME> Name of the monitoring object 40

<MANDT> Client 3

<USERID> SAP user 12

<REPORTEDBY> Reporter (logical name) 16

<STATCHGDAT> Last date the status changed 8

<STATCHGBY> Last user who changed the status (logical name) 16

<STATCHGTIM> Last time the status changed 6

<MSCGLID> Message ID when a message with the log attribute activated an alert 50

<MSGCLASS> Message recorder Message 16

<MSGID> Message ID 30

<MSGARG1> Character string for message insert word 1 128

<ARGTYPE1> Type of message insert word 1 1

<MSGARG2> Character string for message insert word 2 128

<ARGTYPE2> Type of message insert word 2 1

<MSGARG3> Character string for message insert word 3 128

<ARGTYPE3> Type of message insert word 3 1

<MSGARG4> Character string for message insert word 4 128

<ARGTYPE4> Type of message insert word 4 1

<MSGTEXT> Message text 128

<MSG> Translated message 255

Field ID	Description	Source	Length (bytes)
<ALSYSID>	Name of the SAP system	Alert ID (AID) (BAPIAID)	8
<MSEGNAME>	Name of the monitoring segment	40
<ALUNIQNUM>	Unique ID used by AID	10
<ALERTDATE>	Date the alert occurred (YYYYMMDD)	8
<ALERTTIME>	Time the alert occurred (HHMMSS)	6
<MTSYSID>	Name of the SAP system	ID of the MTE associated with the alert (TID) (BAPITID)	8
<MTCLASS>	MTE type	3
<MTNUMRANGE>	Range of numbers (such as resident or temporary)	3
<MTMCNAME>	Name of the monitoring context	40
<MTUID>	Unit ID used by TID	10
<VALUE>	Warning value (corresponding to the color of the CCMS alert entry that can be viewed with transaction code RZ20): 0: Gray (invalid information) 1: Green (OK) 2: Yellow (warning) 3: Red (problem or error)	Alert severity level (BAPIALDATA)	11
<SEVERITY>	Severity level (0-255; severity increases as the value increases)
<FIELDNAME>	Abbreviation of MTE	General property (BAPIALERT)	40
<STATUS>	Alert status	11
<OBJECTNAME>	Name of the monitoring object	40
<MANDT>	Client	3
<USERID>	SAP user	12
<REPORTEDBY>	Reporter (logical name)	16
<STATCHGDAT>	Last date the status changed	8
<STATCHGBY>	Last user who changed the status (logical name)	16
<STATCHGTIM>	Last time the status changed	6
<MSCGLID>	Message ID when a message with the log attribute activated an alert	50
<MSGCLASS>	Message recorder	Message	16
<MSGID>	Message ID	30
<MSGARG1>	Character string for message insert word 1	128
<ARGTYPE1>	Type of message insert word 1	1
<MSGARG2>	Character string for message insert word 2	128
<ARGTYPE2>	Type of message insert word 2	1
<MSGARG3>	Character string for message insert word 3	128
<ARGTYPE3>	Type of message insert word 3	1
<MSGARG4>	Character string for message insert word 4	128
<ARGTYPE4>	Type of message insert word 4	1
<MSGTEXT>	Message text	128
<MSG>	Translated message	255

Return value

0 Normal termination

1 or greater Abnormal termination

Example

This example outputs CCMS alert information using SAP CCMS Monitor Templates as the monitor set name and Entire System as the monitor name. The RFC connection information has already been defined in the environment parameters file.
jr3alget -ms "SAP CCMS Monitor Templates" -mn "Entire System"

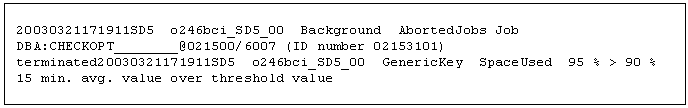

The output example from this command is as follows:
