Job Management Partner 1/Performance Management - Agent Option for Enterprise Applications Description, User's Guide and Reference

2.5 Starting the command prompt

For Windows Server 2008, if the OS's user account control (UAC) function is enabled, the command prompt runs in the following two privilege modes:

Command prompt in the administrator privilege mode (administrator console)
This command prompt supports all Windows operations.

Command prompt in the default privilege mode (default console)
This command prompt supports limited user operations.

If the user account control (UAC) function is disabled, the administrator console is always started.

Make sure that you use the administrator console to execute the commands provided by Performance Management.

The following table describes how to start the command prompt for each administrator user.

Table 2-12 How to start the command prompt for each administrator user

Administrator group Administrator user How to start

Administrators Administrator When the command prompt is started, the administrator console starts.

Other user When UAC is enabled:

When the command prompt is started, the default console starts.

When the administrator console starts, a user account control dialog box is displayed. In the dialog box, clicking the Continue button starts the administrator console. If the Cancel button is clicked, the command prompt is not started.

When UAC is disabled:

When the command prompt is started, the administrator console starts.

There are two administrator consoles, one provided by the OS and the other provided by PFM - Base. The following describes how to start each console.

Organization of this section

(1) How to start the administrator console provided by the OS

(2) How to start the administrator console provided by PFM - Base

Administrator group	Administrator user	How to start
Administrators	Administrator	When the command prompt is started, the administrator console starts.
Other user	When UAC is enabled: When the command prompt is started, the default console starts. When the administrator console starts, a user account control dialog box is displayed. In the dialog box, clicking the Continue button starts the administrator console. If the Cancel button is clicked, the command prompt is not started. When UAC is disabled: When the command prompt is started, the administrator console starts.

(1) How to start the administrator console provided by the OS

From the Start menu, choose Programs and then Accessories, and then right-click Command Prompt and choose Run as Administrator.

If Administrator is displayed on the title bar, the started command prompt is the administrator console.

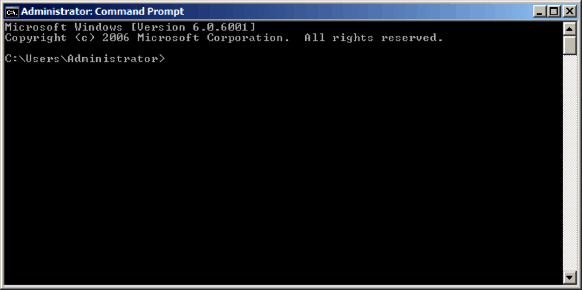

Figure 2-4 Administrator console window provided by the OS

(2) How to start the administrator console provided by PFM - Base

From the Start menu, choose Programs and then Performance Management, and then Administrator Console.

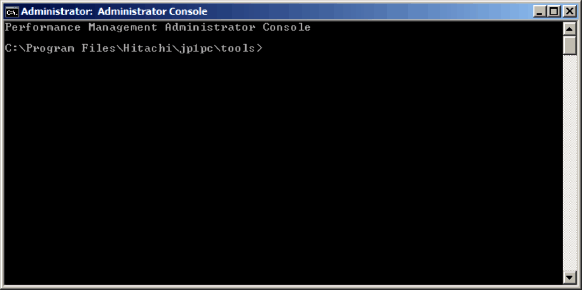

Figure 2-5 Administrator console window provided by PFM - Base
