Job Management Partner 1/Performance Management - Agent Option for Enterprise Applications Description, User's Guide and Reference
Use of a cluster system creates a highly reliable system that can continue jobs even in the event of a system failure, thereby achieving 24-hour Performance Management operation and monitoring.
The following figure shows an example of operation in the event of a failure on the PFM - Agent host in a cluster system.

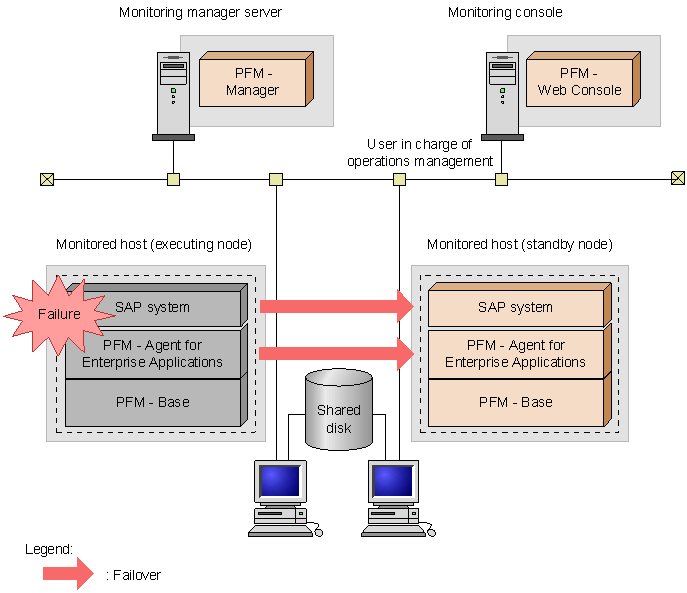

Figure 1-1 Example of operation in a cluster system
Two environments with the same settings are created. The environment that is normally used for operations is defined as the executing node, and the other environment, which is used in the event of a failure, is defined as the standby node.
For details about Performance Management operation in a cluster system, see 4. Operation in a Cluster System.
