Host Status (PI)

Function

This record stores performance data on a physical server over a unit of time. This record is a single-instance record.

In this record, you can collect performance data such as CPU usage and details about a physical server, and CPU usage details by VMM. The figure below shows an example of data that can be collected in this record.

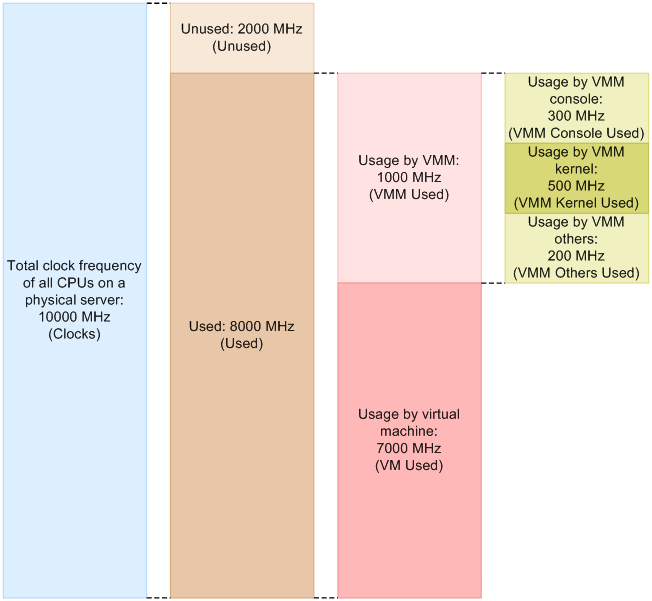

Figure 5-6 Example of collected data

[Figure]

Notes:
  • Information cannot be collected if an attempt to connect to the monitored physical server fails.
  • When VMware information is collected, the timing for collecting the usage, VMM usage, and virtual machine usage differs in VMware, and as a result the following relationship may not hold true in some cases:
    Usage (Used) = VMM usage (VMM Used) + virtual machine usage (VM Used)

Default values and values that can be changed

Item Default value Can it be changed?
Collection Interval 60 Yes
Collection Offset 0 Yes
Log Yes Yes
LOGIF Blank Yes

ODBC key field

None

Lifetime

None

Record size

Fields

PFM - View name
(PFM - Manager name)		 Explanation Summary Format Delta When not collected Unsup-ported
Record Type (INPUT_RECORD_TYPE) The record name. This is always PI. COPY char (8) No -- --
Record Time (RECORD_TIME) The time when the record was created. COPY time_t No -- --
Interval (INTERVAL) Interval during which the information is collected.
[Units: seconds]		 COPY ulong No -- --
Clocks (CLOCKS) Clock frequency of the CPU resource. The total value of the clock frequencies of the physical CPUs installed on the host machine. COPY double No VMware: 0
Hyper-V: 0		 --
Count (COUNT) Number of physical CPU cores in the CPU resources. Number of physical CPU cores installed on the host machine. COPY long No VMware: 0
Hyper-V: 0		 --
Sampling Time (SAMPLING_TIME) Sampling time.
The time when the performance information is collected on the host machine. Displayed in the following format:
yyyy-mm-ddThh:mm[[Figure]hh:mm]#		 COPY string (32) No Blank --
Used (USED) Amount of used CPU resources.
Amount of CPU resources used by the host machine.
[Units: MHz]		 HILO double No VMware: 0
Hyper-V: 0		 --
VMM Used (VMM_USED) Amount of CPU resources used by the VMM.
  • For VMware and Hyper-V
    Amount of CPU resources used by the virtual machine monitor.
[Units: MHz]		 HILO double No VMware: 0
Hyper-V: 0		 --
VM Used (VM_USED) Amount of CPU resources used by the VM.
Amount of CPU resources used by the virtual machine.
[Units: MHz]		 HILO double No VMware: 0
Hyper-V: 0		 --
VMM Console Used (VMM_CONSOLE_USED) Amount of CPU resources used by the VMM console.
Amount of CPU resources used by the virtual system console.
[Units: MHz]		 HILO double No 0 Hyper-V
VMM Kernel Used (VMM_KERNEL_USED) Amount of CPU resources used by the VMM kernel.
  • For VMware
    Amount of CPU resources used by the virtual machine monitor kernel.
[Units: MHz]		 HILO double No VMware: 0 Hyper-V
VMM Others Used (VMM_OTHERS_USED) Amount of CPU resources used by non-VMM processes.
  • For VMware
    Amount of CPU resources used in the virtual machine monitor by something other than the virtual machine monitor console and the virtual machine monitor kernel.
[Units: MHz]		 HILO double No VMware: 0 Hyper-V
Unused (UNUSED) Amount of unused CPU resources.
Amount of unused host CPU resources.
[Units: MHz]		 HILO double No VMware: 0
Hyper-V: 0		 --
Used % (USED_PERCENT) Usage rate of CPU resources.
Percentage of CPU resources used by the host machine.
[Units: %]
Expression: "Used" field / "Clocks" field		 HILO double No VMware: 0
Hyper-V: 0		 --
VMM Used % (VMM_USED_PERCENT) Usage rate of CPU resources by the VMM.
  • For VMware and Hyper-V
    Percentage of CPU resources used by the virtual machine monitor.
[Units: %]
Expression: "VMM Used" field / "Clocks" field		 HILO double No VMware: 0
Hyper-V: 0		 --
VM Used % (VM_USED_PERCENT) Usage rate of CPU resources by the VM.
Percentage of CPU resources used by virtual machines.
[Units: %]
Expression: "VM Used" field / "Clocks" field		 HILO double No 0 --
VMM Console Used % (VMM_CONSOLE_USED_PERCENT) Usage rate of CPU resources by the VMM console.
Percentage of CPU resources used by the virtual system console.
[Units: %]
Expression: "VMM Console Used" field / "Clocks" field		 HILO double No 0 Hyper-V
VMM Kernel Used % (VMM_KERNEL_USED_PERCENT) Usage rate of CPU resources by the VMM kernel.
  • For VMware
    Percentage of CPU resources used by the virtual machine monitor kernel.
[Units: %]
Expression: "VMM Kernel Used" field / "Clocks" field		 HILO double No VMware: 0 Hyper-V
VMM Others Used % (VMM_OTHERS_USED_PERCENT) Usage rate of CPU resources by non-VMM processes.
  • For VMware
    Percentage of CPU resources used in the virtual machine monitor by something other than the virtual machine monitor console and the virtual machine monitor kernel.
[Units: %]
Expression: "VMM Others Used" field / "Clocks" field		 HILO double No VMware: 0 Hyper-V
Unused % (UNUSED_PERCENT) Non-usage rate of CPU resources.
Percentage of unused CPU resources.
[Units: %]
Expression: "Unused" field / "Clocks" field		 HILO double No VMware: 0
Hyper-V: 0		 --

#
The value used in [[Figure]hh:mm] varies depending on the time zone of the monitored host. For example, if the monitored virtual environment is operating according to JST, +09:00 is displayed. If the monitored virtual environment is operating according to UTC, Z is displayed.
