Job Management Partner 1/Performance Management - Agent Option for Virtual Machine Description, User's Guide and Reference
The following figure shows the flow for installing and setting up PFM - Agent for Virtual Machine so that it runs on a logical host in a cluster system.

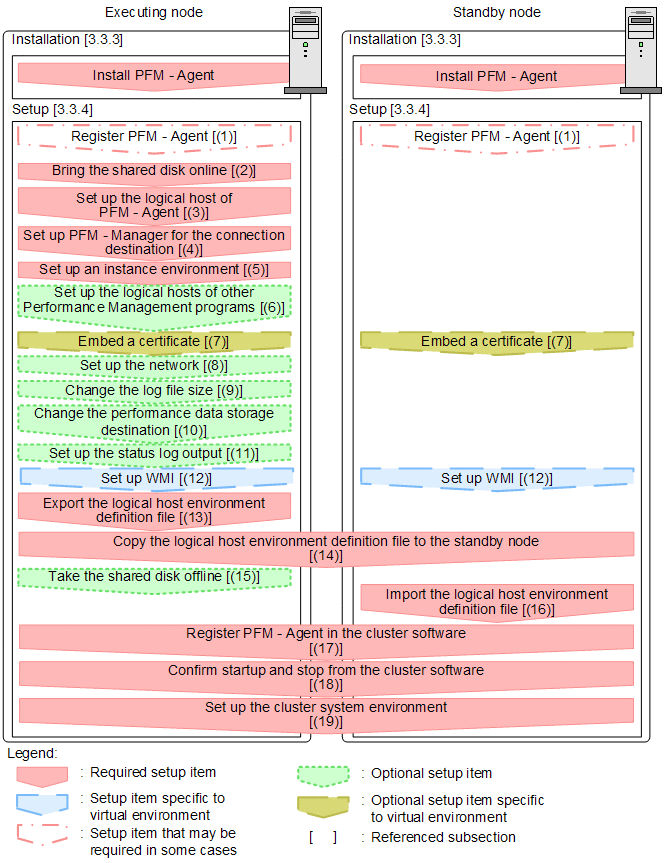

Figure 3-3 Flow for installing and setting up PFM - Agent for Virtual Machine so that it runs on a logical host in a cluster system
- Note:
- Even when you set up PFM - Agent in the logical host environment, the definition content of PFM - Agent in the physical host environment is not inherited. For both the logical host environment and the physical host environment, a new environment is created when an instance environment is set up.
