3.2.1 Failover when an error occurs on the monitored host

The following figure shows the processing that takes place when a failover occurs on the monitored host where PFM - Agent for Virtual Machine is running.

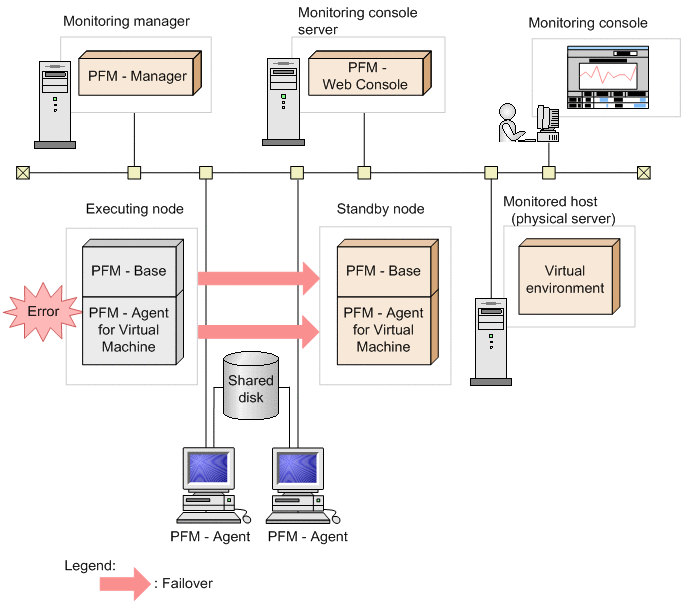

Figure 3-2 Processing that takes place when a failover occurs on the monitored host

[Figure]

If you operate PFM - Web Console during a PFM - Agent for Virtual Machine failover, the message There was no answer(-6) is displayed. In this case, wait until a failover is complete before operating PFM - Web Console.

If you operate PFM - Web Console after a PFM - Agent for Virtual Machine failover, you will be connected to the PFM - Agent for Virtual Machine instance that has started at the failover destination node.
