This section describes an example of environmental definition for a system that uses HA Monitor Kit. This example uses the system configuration shown in the following figure in which an Oracle instance and an Oracle listener are monitored by a single server.

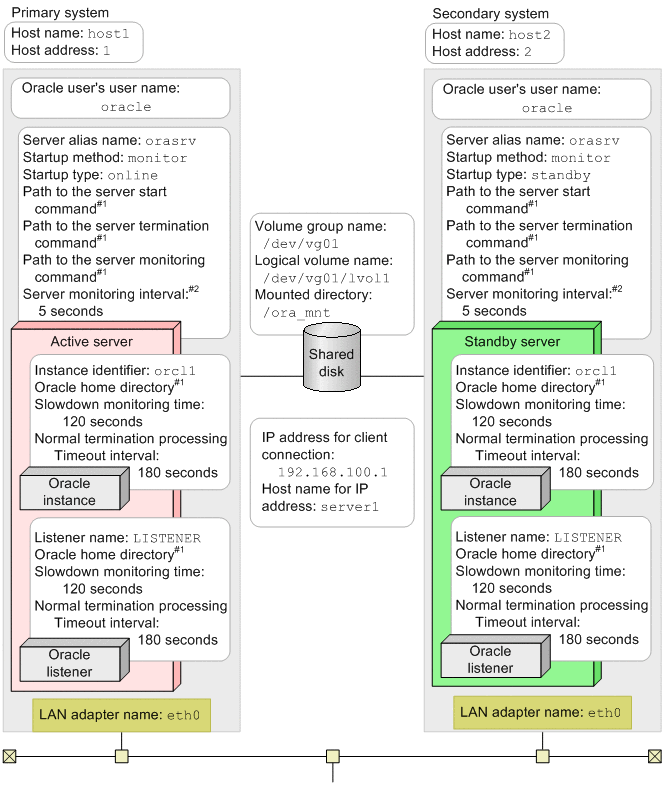

Figure 3-11 System configuration in which an Oracle instance and an Oracle listener are monitored by a single server

#1: The following directory paths are used in the environment definition example:

• Server start command: /opt/hitachi/HAmon/etc/orasrv/actcommand_orasrv
• Server termination command: /opt/hitachi/HAmon/etc/orasrv/termcommand_orasrv
• Server monitoring command runtime shell: /opt/hitachi/HAmon/etc/orasrv/patrol_orasrv.sh
• Oracle home directory: /home/oracle/product/10.2.0/db_1

#2: This is the interval at which the server monitoring command performs monitoring.

An environment definition example for this system configuration follows:

/etc/hosts file

192.168.100.1 server1 # alias IP address

Oracle local naming parameter file (definition file: tnsnames.ora):

ORCL1 = (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = server1)(PORT = 1521)) (CONNECT_DATA = (SERVER = SHARED) (SERVICE_NAME = orcl1) ) )

Oracle instance control definition file (definition file: /opt/hitachi/HAmon/etc/HAmonOra_etc/instance/orcl1.env):

ORACLE_SID=orcl1 ORACLE_BASE=/home/oracle ORACLE_HOME=/home/oracle/product/10.2.0/db_1 ORACLE_USER=oracle PATROL=120 ABORT_LIMIT=180

Oracle listener control definition file (definition file: /opt/hitachi/HAmon/etc/HAmonOra_etc/listener/LISTENER.env):

LISTENER_NAME=LISTENER ORACLE_BASE=/home/oracle ORACLE_HOME=/home/oracle/product/10.2.0/db_1 ORACLE_USER=oracle PATROL=120 ABORT_LIMIT=180

LAN status setting file

server-alias-name.up (definition file: /opt/hitachi/HAmon/etc/orasrv.up):

#!/bin/sh set -x INTERFACE=eth0:1 # LAN interface name IPADDR=192.168.100.1 # alias IP address NETMASK=255.255.255.0 # netmask address BROADCAST=192.168.100.255 # broadcast address RETRYCNT=2 # retry count # Retry for the alias IP address adding. exitcode=1 loopcnt=0 while [ $loopcnt -lt $RETRYCNT ] do # The alias IP address is added to the LAN interface. /sbin/ifconfig $INTERFACE inet $IPADDR netmask $NETMASK broadcast $BROADCAST # The information on old routing cache is deleted. /bin/echo 0 > /proc/sys/net/ipv4/route/flush # The ARP caches are updated. IFNAME=`echo $INTERFACE | /bin/sed -e 's/:[0-9]*$//'` /sbin/arping -U -c 2 -I $IFNAME $IPADDR # Was the alias IP address registered to the system ? RCD=`/sbin/ifconfig -a | /bin/grep ":$IPADDR "` if [ "$RCD" = "" ] then # When it is not registered, "1" is returned as the termination code. exitcode=1 loopcnt=`/usr/bin/expr $loopcnt + 1` else # When it is registered, "0" is returned as the termination code. exitcode=0 break fi done exit $exitcode

server-alias-name.down (definition file: /opt/hitachi/HAmon/etc/orasrv.down):

#!/bin/sh set -x INTERFACE=eth0:1 # LAN interface name RETRYCNT=1 # retry count # Retry for the alias IP address delete. exitcode=1 loopcnt=0 while [ $loopcnt -lt $RETRYCNT ] do # The alias IP address is deleted from the LAN interface. /sbin/ifconfig $INTERFACE down # Was the alias IP address deleted from the system ? RCD=`/sbin/ifconfig -a | /bin/grep "$INTERFACE "` if [ "$RCD" = "" ] then # When it is deleted, "0" is returned as the termination code. exitcode=0 break else # When it is not deleted, "1" is returned as the termination code. exitcode=1 loopcnt=`/usr/bin/expr $loopcnt + 1` sleep 1 fi done # The information on old routing cache is deleted. /bin/echo 0 > /proc/sys/net/ipv4/route/flush exit $exitcode

Server environment definition (definition file: /opt/hitachi/HAmon/etc/servers):

/* Server environment definition */ server name /opt/hitachi/HAmon/etc/orasrv/actcommand_orasrv, alias orasrv, acttype monitor, initial online#, termcommand /opt/hitachi/HAmon/etc/orasrv/termcommand_orasrv, patrolcommand /opt/hitachi/HAmon/etc/orasrv/patrol_orasrv.sh, disk /dev/vg01, fs_name /dev/vg01/lvol1, fs_mount_dir /ora_mnt, lan_updown use, waitserv_exec yes, servexec_retry 0, start_timeout 180;

#: For a secondary system, change this value to standby.

Server start command:

#! /bin/sh #################################################################### LOGNAME=orasrv LOGSIZE=1048576 #################################################################### act_proc(){ RT_CD=0 # Listener haoralsnrbgn LISTENER # Instance haorainsbgn orcl1 return ${RT_CD} } #################################################################### : (omitted)

Server termination command:

#! /bin/sh #################################################################### LOGNAME=orasrv LOGSIZE=1048576 #################################################################### term_proc(){ RT_CD=0 case "$1" in "-e" ) # normal end # Instance haorainsend orcl1 if [ "$?" != "0" ] then RT_CD=1 fi # Listener haoralsnrend LISTENER if [ "$?" != "0" ] then RT_CD=2 fi ;; "-w" ) # monswap # Instance haorainsend orcl1 if [ "$?" != "0" ] then RT_CD=1 fi # Listener haoralsnrend LISTENER if [ "$?" != "0" ] then RT_CD=2 fi ;; "-c" ) # down # Instance haorainsend orcl1 # Listener haoralsnrend LISTENER ;; esac return ${RT_CD} } #################################################################### : (omitted)

Server monitoring command:

#! /bin/sh #################################################################### LOGNAME=orasrv LOGSIZE=1048576 PATROL_INTERVAL=5 #################################################################### patrol_proc(){ # Instance haorainsptl orcl1 if [ "$?" != "0" ] then return 1 fi # Listener haoralsnrptl LISTENER if [ "$?" != "0" ] then return 2 fi return 0 } #################################################################### : (omitted)

Server monitoring command runtime shell:

#! /bin/sh #################################################################### ORACLE_USER=oracle PATROL_SHELL=/opt/hitachi/HAmon/etc/patrolcommand_orasrv #################################################################### : (omitted)
