15.1.2 System configuration

(1) Prerequisite programs (for the Windows version of HADB client)

The HADB ODBC driver requires the following programs.

■ HADB ODBC driver (64-bit mode)

Supported operating systems:

• Windows Server 2012

• Windows Server 2012 R2

• Windows Server 2016

• Windows Server 2019

• Windows Server 2022

• Windows Server 2025

• Windows 10 (x64)

• Windows 11

Required software:

• Microsoft Data Access Components

• HADB client

■ HADB ODBC driver (32-bit mode)

Supported operating systems:

• Windows 10

• Windows 10 (x64)

Required software:

• Microsoft Data Access Components

• HADB client

To Page Top

(2) Prerequisite programs (for the Linux version of HADB client)

The HADB ODBC driver requires the following programs.

Supported operating systems:

• RHEL 8 version 8.1 or later

Required software:

• unixODBC version 2.3.9 (driver manager)

• HADB client

To Page Top

(3) Device configuration

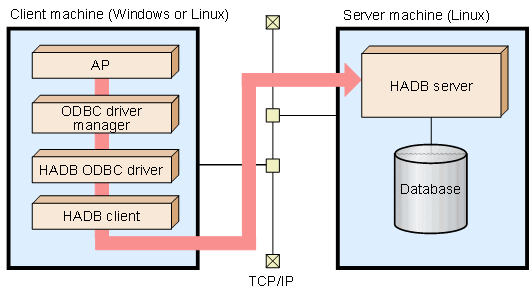

The following figure shows the system configuration for using the HADB ODBC driver.

Figure 15‒1: System configuration for using the HADB ODBC driver
