Nonstop Database, HiRDB Version 9 Disaster Recovery System Configuration and Operation Guide
Set up all of the following paired logical volume groups on each of the server machines that are configured for standby-less system switchover (effects distributed):
The following figure shows an example of the logical volume group setup.

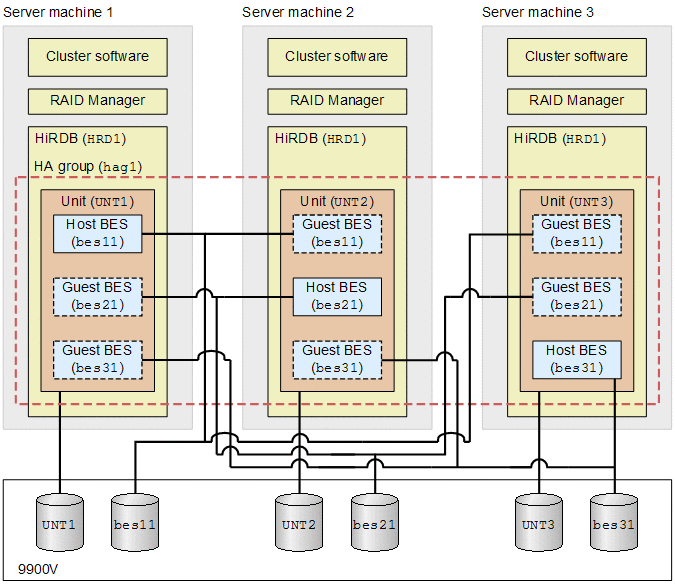

Figure 8-9 Example of the logical volume group setup (when the standby-less system switchover (effects distributed) facility is used)
Pair logical volume group settings in the configuration definition of server machine 1
HRD1_UNT1_USTS HRD1_bes11_DB HRD1_bes11_LOG HRD1_bes11_SPD HRD1_bes11_SSTS HRD1_bes21_DB HRD1_bes21_LOG HRD1_bes21_SPD HRD1_bes21_SSTS HRD1_bes31_DB HRD1_bes31_LOG HRD1_bes31_SPD HRD1_bes31_SSTS |
Pair logical volume group settings in the configuration definition of server machine 2
HRD1_UNT2_USTS HRD1_bes11_DB HRD1_bes11_LOG HRD1_bes11_SPD HRD1_bes11_SSTS HRD1_bes21_DB HRD1_bes21_LOG HRD1_bes21_SPD HRD1_bes21_SSTS HRD1_bes31_DB HRD1_bes31_LOG HRD1_bes31_SPD HRD1_bes31_SSTS |
Pair logical volume group settings in the configuration definition of server machine 3
HRD1_UNT3_USTS HRD1_bes11_DB HRD1_bes11_LOG HRD1_bes11_SPD HRD1_bes11_SSTS HRD1_bes21_DB HRD1_bes21_LOG HRD1_bes21_SPD HRD1_bes21_SSTS HRD1_bes31_DB HRD1_bes31_LOG HRD1_bes31_SPD HRD1_bes31_SSTS |
