2.5.5 System configuration example

The following figure shows an example of a system configuration when the hybrid method is used (for a HiRDB/Single Server).

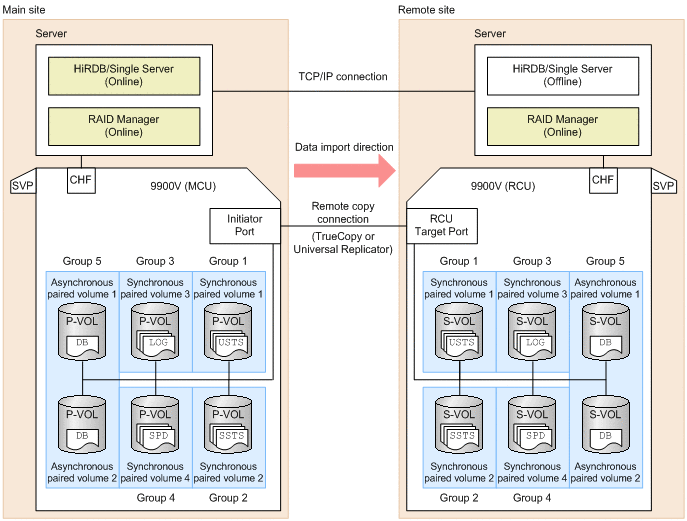

Figure 2-5 Example of a system configuration when the hybrid method is used (for a HiRDB/Single Server)

[Figure]

Legend:
DB: Database file
LOG: System log file
SPD: Synchronization point dump file
USTS: Unit status file
SSTS: Server status file
