Examples

Example 1

This example adds an RDAREA (user03) to a table (reb_table) in a HiRDB single server configuration and executes the rebalancing utility in the shared mode.

Table definition:

CREATE TABLE reb_table(hkeys INT NOT NULL,names CHAR(30))
    FIX HASH HASHA BY hkeys IN (user01,user02)

Index definition:

CREATE INDEX idx1 ON reb_table(hkeys) IN ((idx01),(idx02))

Adding an RDAREA with ALTER TABLE

ALTER TABLE reb_table ADD RDAREA user03 FOR INDEX idx1 in idx03

Explanation:: This statement adds RDAREA user03 to table reb_table. It also adds RDAREA idx03 to index idx1.

pdrbal command

pdrbal -k share -t reb_table control_file

Explanation:: -k share: Operation mode (shared mode); -t reb_table: Name of the rebalancing table; control_file: Control information file

Contents of the control information file (control_file)

execstop time,9:00 1
report /dsk01/rest_file 2

Explanation:

Terminates pdrbal nine hours later.
Outputs the execution result of pdrbal to the process results file (/dsk01/rest_file).

Example 2

This example adds an RDAREA (user03) to a table (sgml_table) in a HiRDB single server configuration and executes the rebalancing utility in the shared mode. The sgml_table table contains the columns of abstract data type provided by a plug-in.

Table definition:

CREATE TABLE sgml_table (
    hkeys INT NOT NULL,
    doctext SGMLTEXT ALLOCATE (sgmltext IN ((LOB1D),
                              (LOB2D)))
    PLUGIN '<DTD>NEWSPAPER</DTD><EXTRACTparm>extract.prm
                     </EXTRACTparm>'
    )
    FIX HASH HASHA BY hkeys IN (user01,user02)

Index definition:

CREATE INDEX idx1 ON sgml_table(hkeys) IN ((idx01),(idx02))
CREATE INDEX ngram_index USING TYPE MASTER.NGRAM on sgml_table(doctext)
    in ((LOB1I),(LOB2I))

Adding an RDAREA with ALTER TABLE


ALTER TABLE sgml_table ADD RDAREA user03
   FOR COLUMN doctext ALLOCATE(sgmltext IN LOB3D)
   FOR INDEX idx1 in idx03,ngram_index in LOB3I

Explanation:: This statement adds RDAREA user03 to table sgml_table. It also adds RDAREA idx03 to index idx1 and RDAREA LOB3I to plug-in index ngram_index.

pdrbal command


pdrbal -k share -t sgml_table control_file

Explanation:: -k share: Operation mode (shared mode); -t sgml_table: Name of the rebalancing table; control_file: Control information file

Contents of the control information file (control_file)

execstop time,12:00                                    1
unld_func type=sgmltext,func=unsgmltext(sgmltext)      2
reld_func type=sgmltext,func=sgmltext(blob)            3

report /dsk01/rest_file 4

Explanation:

Terminates pdrbal 12 hours later.
Specifies a constructor parameter reverse creation function.
sgmltext: Name of the abstract data type
unsgmltext: Name of the constructor parameter reverse creation function
sgmltext: Type of argument
Specifies a constructor function.
sgmltext: Name of the abstract data type
sgmltext: Name of the constructor function
blob: Type of argument
Outputs the execution result of pdrbal to the process results file (/dsk01/rest_file).

Example 3

This example adds an RDAREA (user03) to a table (reb_table) in a HiRDB single server configuration and executes the rebalancing utility in the exclusive mode.

Table definition:

CREATE TABLE reb_table(hkeys INT NOT NULL,names CHAR(30))
    FIX HASH HASHA BY hkeys IN (user01,user02)

Index definition:

CREATE INDEX idx1 ON reb_table(hkeys) IN ((idx01),(idx02))

Adding an RDAREA with ALTER TABLE


ALTER TABLE reb_table ADD RDAREA user03 FOR INDEX idx1 in idx03

Explanation: This statement adds RDAREA user03 to table reb_table. It also adds RDAREA idx03 to index idx1.

pdrbal command


pdrbal -k exclusive -t reb_table -l n control_file

Explanation: -k exclusive: Operation mode (exclusive mode); -t reb_table: Name of the rebalancing table; -l n: no-log mode; control_file: Control information file

Contents of the control information file (control_file)


idxwork /idxwork1         1
sort /sortwork            2
report /dsk01/rest_file   3

Explanation

Specifies a directory for index information files (/idxwork1).
Specifies a work directory for sorting (/sortwork).
Outputs the execution result of pdrbal to the process results file (/dsk01/rest_file).

Example 4

This example adds an RDAREA (user03) to a table (reb_table) in a HiRDB parallel server configuration and executes the rebalancing utility in the exclusive mode.

Table definition:

CREATE TABLE reb_table(hkeys INT NOT NULL,names CHAR(30))
    FIX HASH HASHA BY hkeys IN (user01,user02)

Index definition:

CREATE INDEX idx1 ON reb_table(hkeys) IN ((idx01),(idx02))

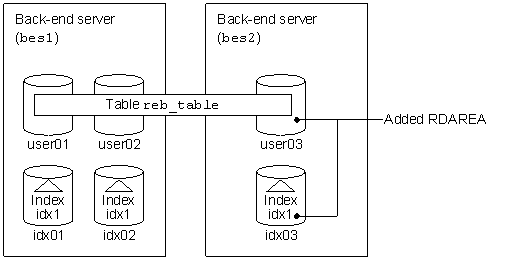

Relationship among servers, RDAREAs, table, and index

Adding an RDAREA with ALTER TABLE


ALTER TABLE reb_table ADD RDAREA user03 FOR INDEX idx1 in idx03

Explanation:: This statement adds RDAREA user03 to table reb_table. It also adds RDAREA idx03 to index idx1.

pdrbal command


pdrbal -k exclusive -t reb_table -l n control_file

Explanation:

-k exclusive: Operation mode (exclusive mode)

-t reb_table: Name of the rebalancing table

-l n: no-log mode

control_file: Control information file

Contents of the control information file (control_file)


idxwork bes2 /idxwork_bes2    1
sort bes2 /sortwork_bes2      2
report /dsk01/rest_file       3

Explanation:

Specifies a directory for index information files (/idxwork_bes2) at the bes2 back-end server.
Specifies a work directory for sorting (/sortwork_bes2) at the bes2 back-end server.
Outputs the execution result of pdrbal to the process results file (/dsk01/rest_file).

Example 5

This example adds the same RDAREAs as the existing one for a table (reb_table) in a HiRDB parallel server configuration and executes the rebalancing utility in the exclusive mode. The table is partitioned and stored in back-end server bes1 on host NODE24 and back-end server bes2 on host NODE25.

Table definition:

  CREATE TABLE reb_table (hkeys INT NOT NULL,names CHAR(30))
      FIX HASH HASHF BY hkeys IN (user01,user02)

Index definition:

  CREATE INDEX idx1 ON reb_table(hkeys) IN ((idx01),(idx02))

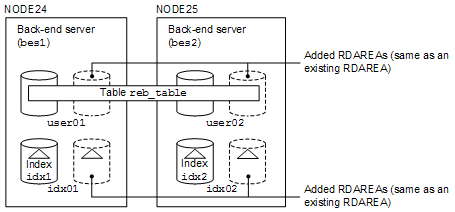

Relationship among servers, RDAREAs, table, and index

Adding an RDAREA with ALTER TABLE


 ALTER TABLE reb_table ADD RDAREA user01 FOR INDEX idx1 in idx01
 ALTER TABLE reb_table ADD RDAREA user02 FOR INDEX idx1 in idx02

Explanation:: This statement adds the same RDAREAs (user01 and user02) as the existing one to table reb_table. It also adds the same RDAREAs (idx01 and idx02) as the existing one to index idx1.

pdrbal command


 pdrbal -k exclusive -t reb_table -i c control_file

Explanation:

-k exclusive: Operation mode (exclusive mode)

-t reb_table: Name of the rebalancing table

-i c: Index creation mode (batch creation mode)

control_file: Control information file

Contents of the control information file (control_file)


 report /dsk01/rest_file        1
 idxwork bes1 /idxwork_bes1     2
 sort bes1 /sort_work_bes1      2
 idxwork bes2 /idxwork_bes2     3
 sort bes2 /sort_work_bes2      3

Explanation:

Outputs the execution result of pdrbal to the process results file (/dsk01/rest_file).
Specifies information about back-end server bes1 for an added RDAREA (idx01).
Name of directory for index information file: /idxwork_bes1
Name of work directory for sorting: /sort_work_bes1
Specifies information about back-end server bes2 for an added RDAREA (idx02).
Name of directory for index information file: /idxwork_bes2
Name of work directory for sorting: /sortwork_bes2
