2.2 pdadmvr (Acquire HiRDB product information)

Organization of this section: (1) Function; (2) Executor; (3) Format; (4) Options; (5) Rules; (6) Notes; (7) Output format

(1) Function

Displays the HiRDB version information.

(2) Executor

HiRDB administrator

(3) Format


 pdadmvr [-s|-c]

(4) Options

(a) -s

Specifies that the coding following the revision number is to be displayed as the version information. The following shows an example of the version information display:

When the -s option is omitted: 09-00
When the -s option is specified: 09-00-01

(b) -c

Specifies that information about the character code type is to be displayed, in addition to the information displayed when no option is specified or the -s option is specified.

(5) Rules

The pdadmvr command can be executed at any time, whether or not HiRDB is active.
The pdadmvr command must be executed at each server machine.

(6) Notes

When the pdadmvr command is executed, return code 0 indicates normal termination, and return code 8 indicates abnormal termination (such as an invalid option).

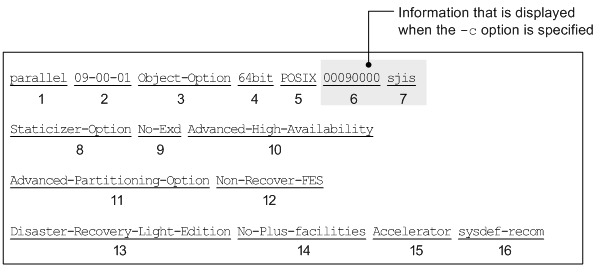

(7) Output format

[Figure]

A circled number in the figure corresponds to the item number in the following table:

No.	Display item	Explanation
1	HiRDB type	single: HiRDB single server configuration parallel: HiRDB parallel server configuration
2	HiRDB version	HiRDB version The display format depends on the option specification: When no option is specified Information through the revision number is displayed. Example: 09-00 When the -s or -c option is specified Information through the code following the revision number is displayed. Example: 09-00-01
3	Object-Option	Object-Option is always displayed.
4	HiRDB addressing mode	64bit is always displayed. 64bit: 64-bit addressing mode
5	Whether the POSIX library version is been installed	POSIX: Installed NO-POSIX: Not installed In the Linux edition, this information is displayed when the -c option is specified, in which case POSIX is always displayed.
6	HiRDB internal information	--
7	Character code type	sjis: Shift JIS Kanji Code chinese: EUC Chinese Kanji Code chinese-gb18030: Chinese Kanji Code (GB18030) ujis: EUC Japanese Kanji Code utf-8: Unicode (UTF-8) utf-8_ivs: Unicode (IVS-supported UTF-8) lang-c: Single-byte character code
8	Whether the HiRDB Staticizer Option is been installed	Staticizer-Option: Installed No-Staticizer-Option: Not installed
9	Whether HiRDB External Data Access is installed^#1	No-Exd is always displayed.
10	Whether HiRDB Advanced High Availability is installed	Advanced-High-Availability: Installed No-Advanced-High-Availability: Not installed
11	Whether the HiRDB Advanced Partitioning Option is installed	Advanced-Partitioning-Option: Installed No-Advanced-Partitioning-Option: Not installed This information is the same as regardless of whether HiRDB Advanced High Availability is installed, because the HiRDB Advanced Partitioning Option is included in HiRDB Advanced High Availability.
12	Whether HiRDB Non Recover FES is installed^#2	Non-Recover-FES: Installed No-Non-Recover-FES: Not installed
13	Whether HiRDB Disaster Recovery Light Edition is installed	Disaster-Recovery-Light-Edition: Installed No-Disaster-Recovery-Light-Edition: Not installed
14	HiRDB type (whether this is HiRDB Server with Additional Function)	No-Plus-facilities: This is not HiRDB Server with Additional Function. Plus-facilities: This is HiRDB Server with Additional Function.
15	Whether HiRDB Accelerator is installed	Accelerator: Installed No-Accelerator: Not installed
16	Operation when the operand is omitted	sysdef-recom: Recommended mode sysdef-v0904: 0904 compatibility mode

#1: This item is displayed for a HiRDB parallel server configuration, but is displayed for a HiRDB single server configuration only when the -c option is specified.

#2: This item is displayed for a HiRDB parallel server configuration only.
