In this example, a utility special unit is installed in the HiRDB single server configuration defined in Example 1. System definitions for the HiRDB single server configuration and the utility special unit are created. The system configuration is as follows:

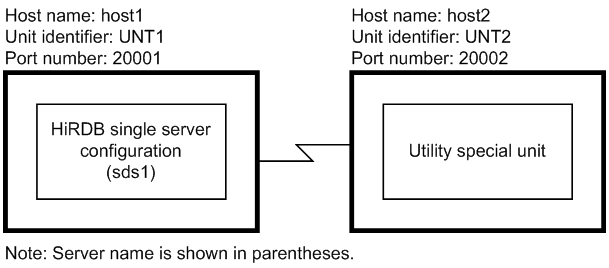

Unit configuration
![[Figure]](FIGURE/ZX0C2010.GIF)

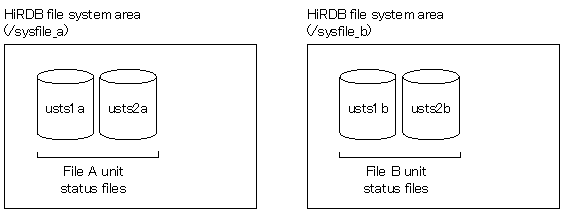

System files configuration for the utility special unit
![[Figure]](FIGURE/ZX0C2020.GIF)
:
pdunit -x host2 -u UNT2 -d "/HiRDB" -p 20002
:
|
set pd_system_id = PDB2 1 set pd_name_port = 20002 2 pdunit -x host1 -u UNT1 -d "/HiRDB" -p 20001 3 pdunit -x host2 -u UNT2 -d "/HiRDB" 4 pdstart -t SDS -s sds1 -u UNT1 5 |
set pd_unit_id = UNT2 1
set pd_syssts_file_name_1 = "untsts1","/sysfile_a/usts1a",\ 2
"/sysfile_b/usts1b"
set pd_syssts_file_name_2 = "untsts2","/sysfile_a/usts2a",\
"/sysfile_b/usts2b"
|
