(a) Creating a HiRDB file system area for the database

The following instruction must be executed to create the HiRDB file system areas:

HiRDB single server configuration

Execute the following shell script:

$PDDIR/sample/sampleconf/fmkfile

Note

Be sure to set the PDDIR environment variable.

HiRDB parallel server configuration

Execute the following shell script at each host (host1 and host2):

$PDDIR/sample/sampleconf/fmkfile

Note

Be sure to set the PDDIR environment variable.

(b) Allocating files such as system log files

The following instruction must be executed to allocate files such as system log files:

HiRDB single server configuration

Execute the following shell script:

$PDDIR/sample/sampleconf/sysfmkfs

Note

Be sure to set the PDDIR environment variable.

HiRDB parallel server configuration

Execute the following shell script at host1:

$PDDIR/sample/sampleconf/sysfmkfs1

Note

Be sure to set the PDDIR environment variable.

Execute the following shell script at host2:

$PDDIR/sample/sampleconf/sysfmkfs2

Note

Be sure to set the PDDIR environment variable.

(c) Initializing files such as system log files

The following instruction must be executed to initialize files such as system log files:

HiRDB single server configuration

Execute the following shell script:

$PDDIR/sample/sampleconf/sysfint

Note

Be sure to set the PDDIR environment variable.

HiRDB parallel server configuration

Execute the following shell script at the host where the system manager is defined (host1):

$PDDIR/sample/sampleconf/sysfint

Note

Be sure to set the PDDIR environment variable.

The instruction shown as follows must be executed to create the initialization control statement file.

The name of the initialization control statement file is $PDDIR/sample/sampleconf/rdinit01.

HiRDB single server configuration

Execute the following shell script:

$PDDIR/sample/sampleconf/mkinit

Note

Be sure to set the PDDIR environment variable.

HiRDB parallel server configuration

Execute the following shell script at the dictionary server:

$PDDIR/sample/sampleconf/mkinit

Note

Be sure to set the PDDIR environment variable.

Use the pdstart command to start HiRDB.

The database definition utility (pddef) is executed shown as follows:

$PDDIR/bin/pddef < $PDDIR/sample/sampleDB/tblecreate_e

Note

Set appropriate values in the PDUSER, PDDIR, PDNAMEPORT, and PDHOST environment variables.

Execute the following shell script to load data using the database load utility (pdload). For details about data loading, see the manual HiRDB Version 9 Command Reference.

$PDDIR/sample/sampleDB/loadinf_e

It may not be possible to execute a HiRDB operation command because it has the same name as an OS command or a command provided by another program. In this case, the following actions can be taken:

• Make the environment variable setting that gives HiRDB commands precedence over other commands.
• Specify the absolute path of the command to be executed.

If neither of these actions can be taken, there is a way to execute a HiRDB operation command under a user-defined name. HiRDB provides a sample shell script for this purpose.

(a) Names of sample files for shell script provided by HiRDB

HiRDB provides a sample shell script file appropriate to each platform. The table below lists and describes the sample shell script files provided by HiRDB; they are stored in the following directory:

• HiRDB single server configuration: /opt/HiRDB_S/sample/sampleconf
• HiRDB parallel server configuration: /opt/HiRDB_P/sample/sampleconf


  Table 21-9 Sample shell script files for executing commands under aliases

  File name	Contents	Notes
  aliascmdbsh	Sample file for Bourne shell	Do not copy in the bin or lib directory under the HiRDB directory
  aliascmdcsh	Sample file for C shell

(b) Procedure for creating an alias for a command

To create an alias for an operation command:

1. Copy the shell script sample file into a desired directory. To create aliases for multiple commands, copy it once for each of the commands. Do not copy it into the bin or lib directory under the HiRDB directory.
2. Set the copy target directory for the sample file in the PATH environment variable, or set path as the search path.
3. Rename the file copied in step 1 to the alias of the HiRDB operation command. For example, command name pdmod might be changed to hirmod.
4. Open the copied sample file and change cc...cc to the name of the HiRDB operation command to be executed under the alias, as shown in Figures 21-4 and 21-5.

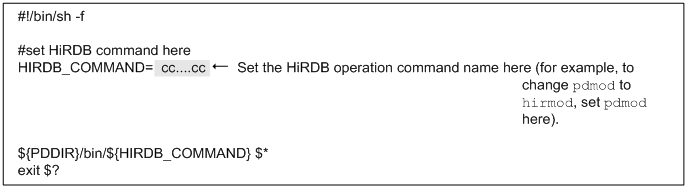

   Figure 21-4 Sample file for Bourne shell

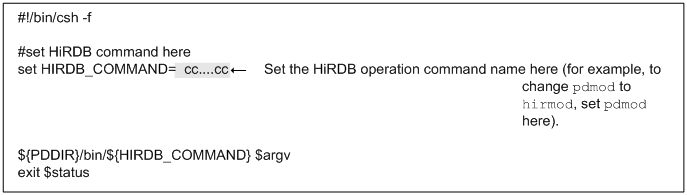

   Figure 21-5 Sample file for C shell



This procedure enables a HiRDB operation command to be executed under any desired name. Options can be specified in the alias command in the same manner as with the normal HiRDB operation command.

(c) Notes

1. A name other than the HiRDB operation command name must be assigned to a copy of the sample file.
2. It is possible that the $PDDIR/bin and $PDDIR/lib directories under the HiRDB directory will be deleted in their entirety when the pdsetup -d command is executed. For this reason, sample files must not be copied into these directories.
3. The contents of the sample files must not be changed, except for setting a HiRDB operation command name.
4. To cancel execution of a created alias command during command processing, the HiRDB command process must be terminated at an extension of the alias process. Terminating the alias process does not automatically terminate the HiRDB command process.
5. If a created alias command is executed and another process is terminated while the HiRDB command is waiting for a response to be entered, HiRDB command execution may result in an error or the response entry wait status may still be in effect. If the response entry wait status is still in effect, the HiRDB command process must be terminated.
