Nonstop Database, HiRDB Version 9 Installation and Design Guide
To avoid contention among disk accesses, you should place list RDAREAs on a separate disk from any other RDAREAs.
Creating one list RDAREA lets you create lists for the tables that are stored in all user RDAREAs.
The following figure shows an example of list RDAREA placement.

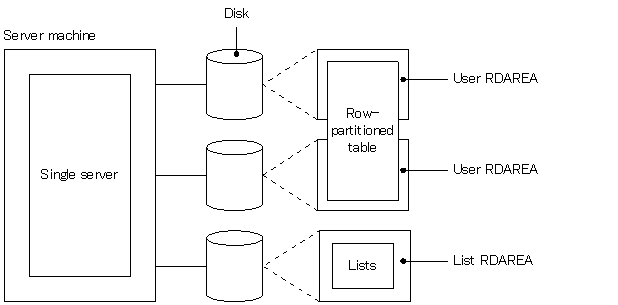

Figure 8-10 Example of list RDAREA placement (HiRDB single server configuration)
