The following figure shows an example of a system configuration for a HiRDB single server configuration. Figure 8-2 shows system configurations with a utility special unit installed.

The HiRDB single server configuration is defined in the HiRDB system definition. For details about definition examples of the system configurations, see the manual HiRDB Version 9 System Definition.

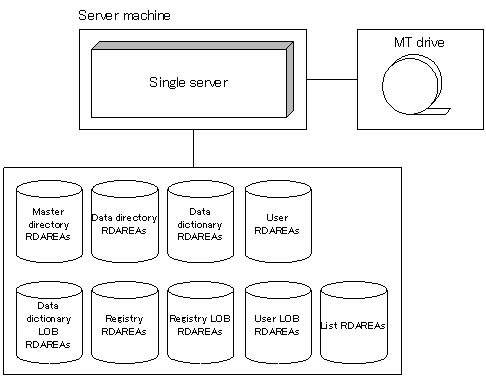

Figure 8-1 System configuration for a HiRDB single server configuration

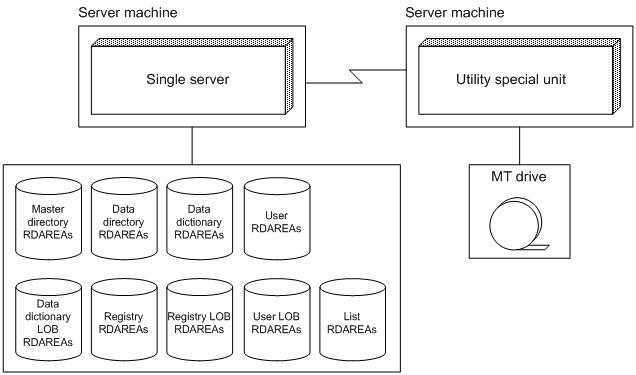

Figure 8-2 System configuration for a HiRDB single server configuration with a utility special unit installed
