Create the control statement file that is to be specified in the database initialization utility's (pdinit) argument. You can create the control statement file at any location. This example creates a file under the following filename:

• /usr/hirdb/pdinit01

Contents of the control statement file

create rdarea RDMAST for masterdirectory 1 server name dic file name "/rdarea01/rdmast01" initial 10 segments; create rdarea RDDIR for datadirectory 2 server name dic file name "/rdarea01/rddir01" initial 5 segments; create rdarea RDDIC for datadictionary 3 server name dic extension use 50 segments file name "/rdarea01/rddic01" initial 20 segments;

Explanation:

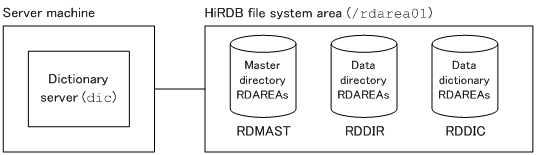

1. Definition of the master directory RDAREA
   This example specifies the name of the dictionary server (dic) that manages the master directory RDAREA. It creates a HiRDB file named rdmast01 in the HiRDB file system area. This HiRDB file has 10 segments.

2. Definition of data directory RDAREA
   This example specifies the name of the dictionary server (dic) that manages the data directory RDAREA. It creates a HiRDB file named rddir01 in the HiRDB file system area. This HiRDB file has five segments.

3. Definition of the data dictionary RDAREA
   This example specifies the name of the dictionary server (dic) that manages the data dictionary RDAREAs. It creates a HiRDB file named rddic01 in the HiRDB file system area. This HiRDB file has 20 segments.
   This example uses the automatic RDAREA extension feature. The extension size is 50 segments.


Example of command entry

pdinit -d /usr/hirdb/pdinit01

Explanation:

-d: Specifies the name of the control statement file that was previously created in (1).
