Figure 5-2 and Table 5-3 show the status file status changes during HiRDB operation.

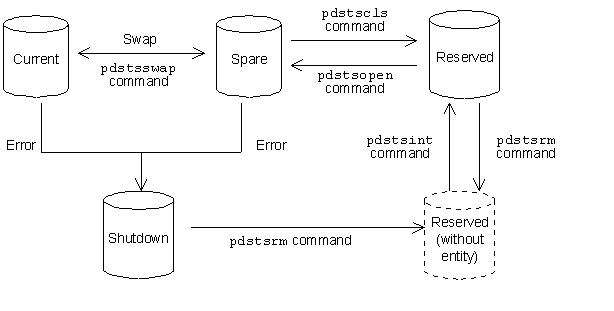

Figure 5-2 Status file status changes during HiRDB operation

Table 5-3 Status file status changes during HiRDB operation

Event					Status of status file
					Open		Closed
					Current	Spare	Reserved		Hold
					ACTIVE*	STAND BY*	CLOSE*	NONE*	BLOCK ADE*
					1	2	3	4	5
Shortage of space for status files occurred					2	1
pdstsswap command was executed					2	1
pdstscls command was executed						3
pdstsopen command was executed							2
Output error occurred	Single system				5
	Dual sys- tems	Spare files exist			5
		No spare files exist	Single system opera- tion possi- ble	Both systems opera- ting
				Single system opera- ting	5
			Single system operation not possible		5

Legend:

: Does not apply, or status does not change.

n: Status to which status file changes after occurrence of the event.

For example, 1 indicates that after the event occurs, the status of the status file changes to current (status No. 1).

Note

• The status transitions listed in this table assume that the relevant events were processed normally.
• Even if the pdstsinit command or pdstsrm command is executed on reserved or hold files, the status of status files displayed by the pdls command does not change.

^* Indicates the execution result (status of the status files) of the pdls -d sts command.
