HiRDB provides the following sample files:

• Sample database
• Sample configuration
• Sample UOC

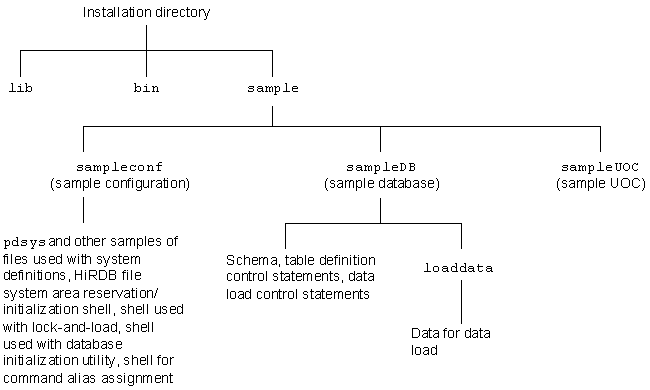

Figure 24-1 shows the directory structure of the sample files. All the directories following sample are located under the installation directory. Executing the pdsetup command does not copy them to the HiRDB directory.

Figure 24-1 Directory structure of sample files

Note

The following are the installation directories:

HiRDB/Single Server	HiRDB/Parallel Server
/HiRDB_S/sample/sampleconf	/HiRDB_P/sample/sampleconf
/opt/HiRDB_S/sample/sampleconf	/opt/HiRDB_P/sample/sampleconf

Organization of this section

24.1.1 Names of sample files
