Defining a table

The RDAREA storage unit depends on the data type of the columns that constitute the table. The explanations below are based on the example of a STAFF_TABLE table that consists of EMPLOYEE_NUMBER, DOCUMENT_DATA (LOB data), and abstract data type t_EMPLOYEE. For a table containing abstract data type columns, the portion without the abstract data type columns is called the abstract data type column structure base table.

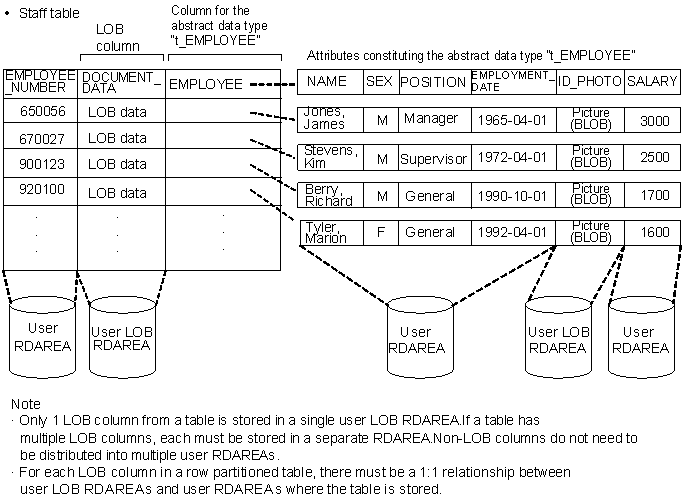

[Figure]

Explanation:: STAFF_TABLE is divided among and stored in user RDAREAs RDAREA01 and RDAREA02 on disks A and B, respectively. DOCUMENT_DATA of this STAFF_TABLE (LOB column) is stored in user LOB RDAREAs LOBAREA01 and LOBAREA02, and the abstract data type (LOB attribute) ID_PHOTO is stored in user LOB RDAREAs LOBAREA03 and LOBAREA04.

Organization of this subsection: (1) Key range partitioning; (2) Flexible hash partitioning or FIX hash partitioning

(1) Key range partitioning

Specification of storage conditions:

CREATE TABLE STAFF_TABLE
(EMPLOYEE_NUMBER CHAR(6),
 DOCUMENT_DATA BLOB(64K) IN ((LOBAREA01),(LOBAREA02)),
 EMPLOYEE t_EMPLOYEE ALLOCATE(ID_PHOTO
     IN ((LOBAREA03),(LOBAREA04)))
    )IN ((RDAREA01)EMPLOYEE_NUMBER<=700000,(RDAREA02));

Specification of boundary value:

CREATE TABLE STAFF_TABLE
(EMPLOYEE_NUMBER CHAR(6),
 DOCUMENT_DATA BLOB(64K) IN ((LOBAREA01),(LOBAREA02)),
 EMPLOYEE t_EMPLOYEE ALLOCATE(ID_PHOTO
     IN ((LOBAREA03),(LOBAREA04)))
    )PARTITIONED BY EMPLOYEE_NUMBER
     IN ((RDAREA01)800000,(RDAREA02));

(2) Flexible hash partitioning or FIX hash partitioning

CREATE TABLE STAFF_TABLE
(EMPLOYEE_NUMBER CHAR(6),
 DOCUMENT_DATA BLOB(64K) IN ((LOBAREA01),(LOBAREA02)),
 EMPLOYEE t_EMPLOYEE ALLOCATE(ID_PHOTO
     IN ((LOBAREA03),(LOBAREA04)))
    )[FIX]^* HASH HASH6 BY EMPLOYEE_NUMBER
     IN (RDAREA01,RDAREA02);

^* This specification is applicable to FIX hash partitioning.
