When you use the system generator to set up an environment for your HiRDB/Parallel Server, the resulting system configuration would be described as follows. Figure 4-7 shows a sample system configuration.

1. One front-end server is created on each unit (so that there will be multiple front-end servers). For details about how to set up multiple front-end servers, see 10.1.3 Setting up multiple front-end servers.
2. The system manager is created on the server machine on which the system generator (pdgen command) is executed.
3. The dictionary server is created on the unit specified on the Master menu.
4. Back-end servers are created on each unit. The Master menu is used to specify the number of back-end servers to be created on each unit.

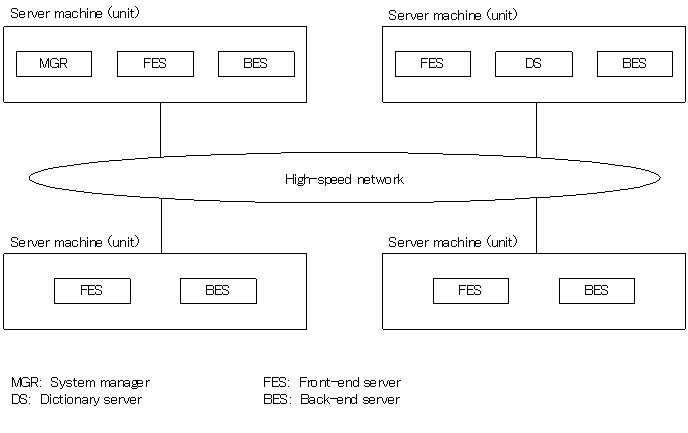

   Figure 4-7 Example of system configuration created by system generator
